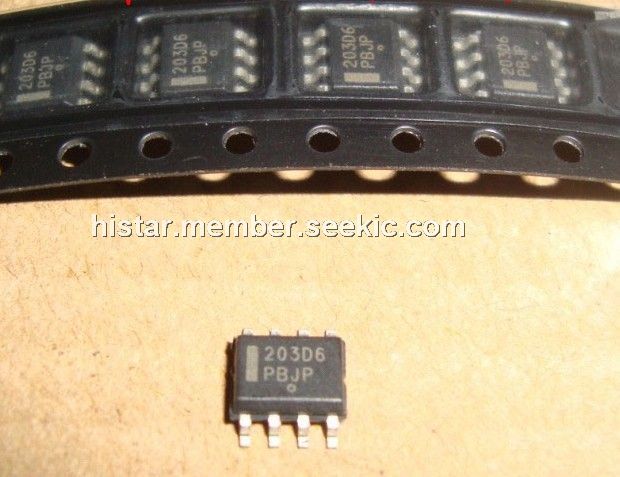

203D6

PWM Current-Mode Controller, SOP8, 16 V, 5.0 mA, High-Voltage Startup Current Source

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.35~0.47 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.35~0.47

PartNumber:: 203D6

Brand:: ON Semiconductor - ON | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Zou pinhui's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-05

From Other Seller

Part Number:203D6
US $0.35 - 0.47
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

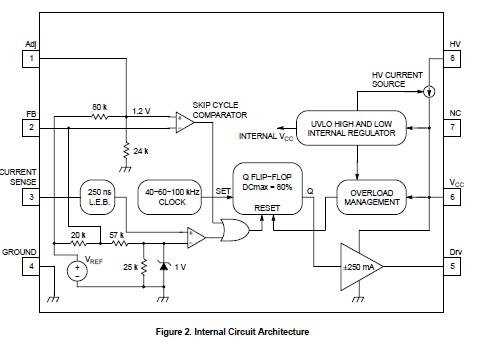

The 203D6 is a PWM Current-Mode Controller for Universal Off-Line Supplies Featuring Standby and Short Circuit Protection. With an internal structure operating at a fixed 40 kHz, 60 kHz or 100 kHz switching frequency, the 203D6 features a high-voltage startup FET which ensures a clean and loss.less startup sequence. Its current-mode control naturally provides good audio.susceptibility and inherent pulse-by-pulse control. The applications of the 203D6 include AC-DC Adapters for Notebooks, etc, Offline Battery Chargers and Auxiliary Power Supplies (USB, Appliances, TVs, etc.)

Parametrics

203D6 absolute maximum ratings: (1)Power Supply Voltage VCC, Drv: 16 V; (2)Power Supply Voltage on all other pins except Pin 5 (Drv), Pin 6 (VCC) and Pin 8 (HV): -0.3 to 10 V; (3)Maximum Current into all pins except Pin 6 (VCC) and Pin 8 (HV) when 10 V ESD diodes are activated: 5.0 mA; (4)Thermal Resistance Junction-to-Air, RθJA: 100℃/W; (5)Maximum Junction Temperature, TJMAX: 150℃; (6)Temperature Shutdown: 170℃; (7)Hysteresis in Shutdown: 30℃; (8)Storage Temperature Range: -60 to +150℃; (9)ESD Capability, HBM Model, All pins except Pin 6 (VCC) and Pin 8 (HV): 2.0 KV; (10)ESD Capability, Machine Model: 200 V; (11)Maximum Voltage on Pin 6 (VCC) and Pin 8 (HV) Decoupled to Ground with 10μF: 450 V.

Features

203D6 features: (1)Pb-Free Packages are Available; (2)High-Voltage Startup Current Source; (3)Auto-Recovery Internal Output Short-Circuit Protection; (4)Extremely Low No-Load Standby Power; (5)Current-Mode with Adjustable Skip-Cycle Capability; (6)Internal Leading Edge Blanking; (7)250 mA Peak Current Capability; (8)Internally Fixed Frequency at 40 kHz, 60 kHz and 100 kHz; (9)Direct Optocoupler Connection; (10)Undervoltage Lockout at 7.8 V Typical; (11)SPICE Models Available for TRANsient and AC Analysis; (12)Pin to Pin Compatible with NCP1200.
