AD8302ARU

integrated system, TSOP, 5.5 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.52~4.69 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.52~4.69

PartNumber:: AD8302ARU

Brand:: Analog Devices - ADI | Pack: TSOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Zou pinhui's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-10

From Other Seller

Part Number:AD8302ARU
US $3.52 - 4.69
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

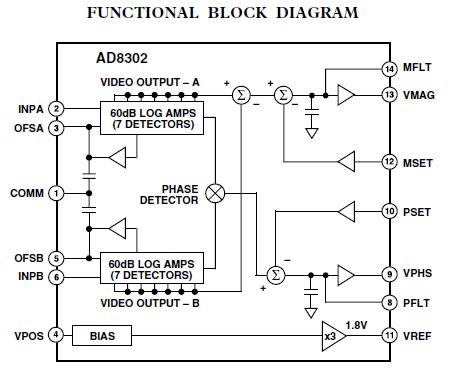

The AD8302ARU is an innovative, fully integrated system for measuring gain/loss and phase in numerous receive, transmit, and instrumentation applications. It requires few external components and a single supply of 2.7 V–5.5 V. The ac-coupled input signals can range from –60 dBm to 0 dBm in a 50 Ω system, from low frequencies up to 2.7 GHz. The outputs of AD8302ARU provide an accurate measurement of either gain or loss over a ±30 dB range scaled to 30 mV/dB, and of phase over a 0℃–180℃ range scaled to 10 mV/degree. The applications of the AD8302ARU include RF/IF PA Linearization Precise, RF Power Control, Remote System Monitoring and Diagnostics, Return Loss/VSWR Measurements, Log Ratio Function for AC Signals.

Parametrics

AD8302ARU absolute maximum ratings: (1)Supply Voltage VS: 5.5 V; (2)PSET, MSET Voltage: VS + 0.3 V; (3)INPA, INPB Maximum Input: –3 dBV; (4)Equivalent Power Re. 50 Ω: 10 dBm; (5)θJA2: 150℃/W; (6)Maximum Junction Temperature: 125℃; (7)Operating Temperature Range: –40℃ to +85℃; (8)Storage Temperature Range: –65℃ to +150℃; (9)Lead Temperature Range (Soldering 60 sec): 300℃.

Features

AD8302ARU features: (1)Measures Gain/Loss and Phase up to 2.7 GHz; (2)Dual Demodulating Log Amps and Phase Detector; (3)Input Range –60 dBm to 0 dBm in a 50 Ω System; (4)Accurate Gain Measurement Scaling (30 mV/dB) Typical Nonlinearity < 0.5 dB; (5)Accurate Phase Measurement Scaling (10 mV/Degree) Typical Nonlinearity < 1 Degree; (6)Measurement/Controller/Level Comparator Modes; (7)Operates from Supply Voltages of 2.7 V–5.5 V; (8)Stable 1.8 V Reference Voltage Output; (9)Small Signal Envelope Bandwidth from DC to 30 MHz.
