ADP3110A

MOSFET driver, SOP8, -0.3V to +15V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.94~1.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.94~1.25

PartNumber:: ADP3110A

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Zou pinhui's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-09

From Other Seller

Part Number:ADP3110A
US $0.94 - 1.25
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

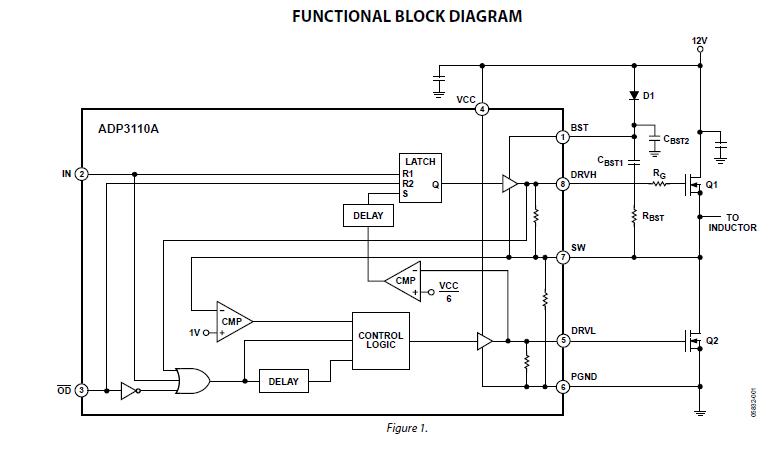

The ADP3110A is a dual, high voltage MOSFET driver optimized for driving two N-channel MOSFETs, the two switches in a nonisolated synchronous buck power converter. The device is capable of driving a 3000 pF load with a 25 ns propagation delay and a 30 ns transition time. One of the ADP3110A can be bootstrapped and is designed to handle the high voltage slew rate associated with floating high-side gate drivers. The ADP3110A includes overlapping drive protection to prevent shoot-through current in the external MOSFETs. The device is specified over the commercial temperature range of 0 to 85℃ and is available in an 8-lead SOIC_N or an 8-lead LFCSP_VD package. The applications of the ADP3110A include Multiphase desktop CPU supplies and Single-supply synchronous buck converters.

Parametrics

ADP3110A absolute maximum ratings: (1)VCC: -0.3 V to +15 V; (2)BST, DC: -0.3 V to VCC + 15 V; <200 ns: -0.3 V to +35 V; (3)BST to SW: -0.3 V to +15 V; (4)SW, DC: -5 V to +15 V; <200 ns: -10 V to +25 V; (5)DRVH, DC: SW-0.3 V to BST + 0.3 V; <200 ns: SW - 2 V to BST + 0.3 V; (6)DRVL, DC: -0.3 V to VCC + 0.3 V; <200 ns: -2 V to VCC + 0.3 V; (7)IN, OD: -0.3 V to 6.5 V; (8)θJA, SOIC_N, 2-Layer Board: 123℃/W; 4-Layer Board: 90℃/W; (9)Operating Ambient Temperature Range: 0 to 85℃; (10)Junction Temperature Range: 0 to 150℃; (11)Storage Temperature Range: -65 to +150℃; (12)Lead Temperature, Soldering (10 sec): 300℃; Vapor Phase (60 sec): 215℃; Infrared (15 sec): 260℃.

Features

ADP3110A features: (1)All-in-one synchronous buck driver; (2)Bootstrapped high-side drive; (3)One PWM signal generates both drives; (4)Anticross conduction protection circuitry; (5)OD for disabling the driver outputs: Meets CPU VR requirement when used with Analog Devices Flex-Mode controller.
