Product Summary

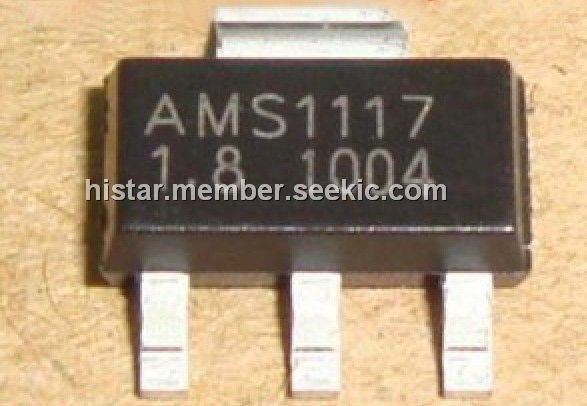

The AMS1117-1.8V is an adjustable and fixed voltage regulator. It is designed to provide 1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the AMS1117-1.8V is guaranteed maximum 1.3V at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1%. Current limit is also trimmed, minimizing the stress under overload conditions on both the regulator and power source circuitry. The AMS1117-1.8V devices are pin compatible with other three-terminal SCSI regulators and are offered in the low profile surface mount SOT-223 package, in the 8L SOIC package and in the TO-252 (DPAK) plastic package.

Parametrics

AMS1117-1.8V absolute maximum ratings: (1)Input Voltage: 15V; (2)Operating Junction Temperature Control Section: 0℃ to 125℃; (3)Power Transistor: 0℃ to 150℃; (4)Storage temperature: - 65℃ to +150℃; (5)Lead Temperature: 265℃.

Features

AMS1117-1.8V features: (1)Three Terminal Adjustable or Fixed Voltages High Efficiency Linear Regulators 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V; (2)Output Current of 1A; (3)Operates Down to 1V Dropout; (4)Line Regulation: 0.2% Max; (5)Load Regulation: 0.4% Max; (6)SOT-223, TO-252 and SO-8 package available.

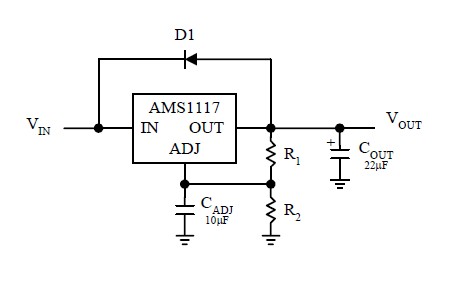

Diagrams
