Product Summary

The AO4828 is a dual N-Channel enhancement mode field effect transistor. It uses advanced trench technology to provide excellent RDS(ON) and low gate charge. This device is suitable for use as a load switch or in PWM applications. Standard Product AO4828 is Pb-free(meets ROHS & Sony 259 specifications). The AO4828 is a Green Product ordering option. It is electrically identical.

Parametrics

AO4828 absolute maximum ratings: (1)Drain-Source Voltage VDS: 60V; (2)Gate-Source Voltage VGS: ±20V; (3)Continuous Drain Current A TA=25℃ ID: 4.5A; TA=70℃ ID: 3.6A; (4)Pulsed Drain Current IDM: 20A; (5)Power Dissipation TA=25℃ PD: 2W; TA=70℃ PD: 1.28W; (6)Junction and Storage Temperature Range TJ, TSTG: -55 to 150℃.

Features

AO4828 features: (1)VDS (V) = 60V; (2)ID = 4.5A (VGS = 10V); (3)RDS(ON) < 56mΩ (VGS = 10V); (4)RDS(ON) < 77mΩ (VGS = 4.5V).

Diagrams

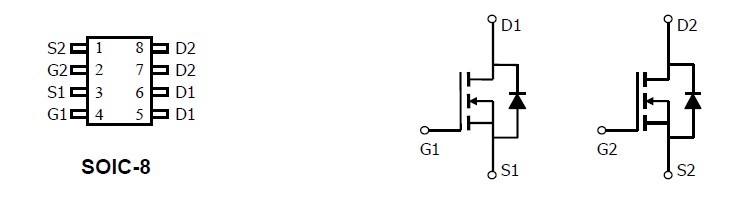

AO4828 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

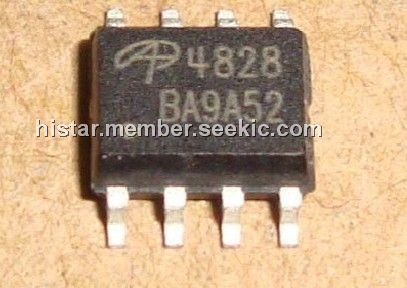

AO4828
AO4828

MOSFET DUAL N-CH 60V 4.5A 8-SOIC
Data Sheet
0-1: $0.46
1-25: $0.32
25-100: $0.28
100-250: $0.24
250-500: $0.21
500-1000: $0.16
