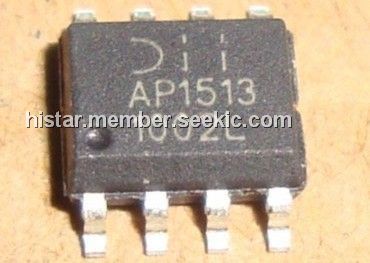

AP1513

2A step-down converter, SOP8, VSS - 0.3 to VSS + 20 V, Current limit

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.52~0.69 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.52~0.69

PartNumber:: AP1513

Brand:: Diodes Incorporated - Diodes | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Zou pinhui's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-08

From Other Seller

Part Number:AP1513
US $0.52 - 0.69
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

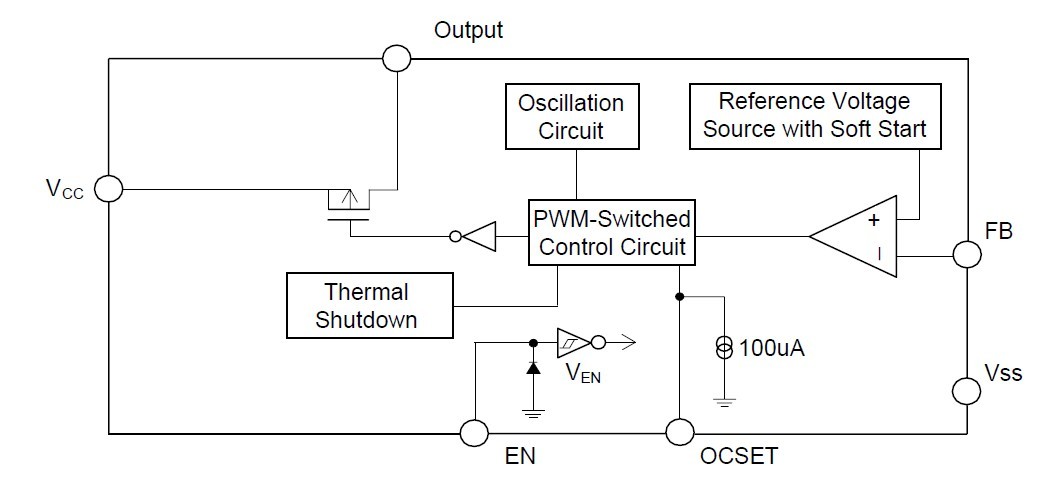

The AP1513 is a PWM control 2A step-down converter. It consists of step-down switching regulator with PWM control. The device includes a reference voltage source, oscillation circuit, error amplifier, and internal PMOS. It provides low-ripple power, high efficiency, and excellent transient characteristics. The PWM control circuit is able to vary the duty ratio linearly from 0 up to 100%. The applications of the AP1513 include: PC Motherboard, LCD Monitor, Graphic Card, DVD-Video Player, Telecom Equipment, ADSL Modem, Printer and other Peripheral Equipment, Microprocessor core supply, Networking power supply.

Parametrics

AP1513 absolute maximum ratings: (1)VCC VCC Pin Voltage: VSS - 0.3 to VSS + 20 V; (2)VFB Feedback Pin Voltage: VSS - 0.3 to VCC V; (3)VEN EN Pin Voltage: VSS - 0.3 to VIN + 0.3 V; (4)VOUT Switch Pin Voltage: VSS - 0.3 to VIN + 0.3 V; (5)TJ Junction Temperature Range: -40 to +125 ℃; (6)TSTG Storage Temperature Range: -40 to +150 ℃.

Features

AP1513 features: (1)Input voltage: 3.6V to 18V; (2)Output voltage: 0.8V to VCC; (3)Duty ratio: 0% to 100% PWM control; (4)Oscillation frequency: 300KHz typ.; (5)Soft-start, Current limit, Enable function; (6)Thermal Shutdown function; (7)Built-in internal SW P-channel MOS; (8)SOP-8L: Available in Green Molding Compound; (9)Lead Free Finish/RoHS Compliant for Lead Free and Green products.
