Product Summary

The ATTINY2313-20SU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATTINY2313-20SU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Parametrics

ATTINY2313-20SU maximum ratings: (1)Memory Size: 28000 B ; (2)Number of I/O Pins: 18 ; (3)Number of Pins: 20 ; (4)Access Time: 20.0 μs ; (5)Clock Speed: 20.0 MHz ; (6)Supply Voltage (DC): 5.00 V ; (7)Clock Speed: 20.0 MHz (max) ; (8)Supply Voltage (DC): 5.50 V (max) ; (9)Case / Package: SOIC-20 ; (10)Lead-Free Status: Lead Free ; (11)Mounting Type: Surface Mount ; (12)Packaging: Tube ; (13)RoHS: Compliant.

Features

ATTINY2313-20SU features: (1)Utilizes the AVR RISC Architecture; (2)AVR High-performance and Low-power RISC Architecture; (3)Data and Non-volatile Program and Data Memories; (4)Peripheral Features; (5)Special Microcontroller Features; (6)I/O and Packages; (7)Operating Voltages; (8)Speed Grades; (9)Typical Power Consumption.

Diagrams

ATTINY2313-20SU Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

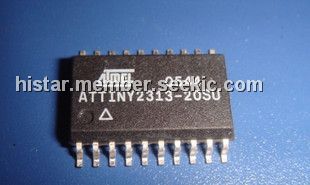

ATtiny2313-20SU
ATtiny2313-20SU
Atmel
8-bit Microcontrollers (MCU) 2kB Flash 0.128kB EEPROM 18 I/O Pins
Data Sheet
0-1: $1.54
1-10: $1.28
10-25: $0.97
25-100: $0.86
ATTINY2313-20SUR
ATTINY2313-20SUR
Atmel
8-bit Microcontrollers (MCU) AVR 2KB FLSH 128B EE 128B SRAM 1UART 20P
Data Sheet
0-820: $0.90
820-1000: $0.88
