Product Summary

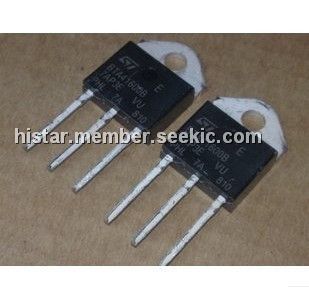

The BTA41-1000B is a standard TRIAC. The BTA41-1000B is available in high power packages. It is suitable for general purpose AC switching. They can be used as an ON/OFF function in application such as static circuits or for phase control operation in light dimmers, motor speed controllers.

Parametrics

BTA41-1000B maximum ratings: (1)IT, RMS on-stage current: 40A; (2)ITSM, non repetitive surge peak on-stage current when F=50Hz and t=20ms: 400A; when F=60Hz and t=16.7ms: 420A; (3)I2t value for fusing when tp=10ms: 880A2s; (4)dl/dt, critical rate of rise of on-stage current IG=2xIGT,tr≤100ns when F=120Hz, Tj=125℃: 20A/μs; (5)IGM, peak gate current, tp=20μs, TJ=125℃: 8A.

Features

BTA41-1000B features: (1)IT(RMS): 40A; (2)VDRM/VRRM: 600 and 800V; (3)IGT(Q1): 50mA.

Diagrams

BTA41-1000B simplified circiut
