Product Summary

The D1267AN is a vertical clock driver for CCD image sensors. This IC is the successor of the D1267AN with attractive features. Power consumption is reduced approximately 30% for the D1267AN version. The applications of the D1267AN include CCD cameras.

Parametrics

D1267AN absolute maximum ratings: (1)Supply voltage: 0 to -10 V; (2)Supply voltage: VL-0.3 to 2VL+35 V; (3)Supply voltage: VL-0.3 to 3.0 V; (4)Input voltage: VL-0.3 to VH+0.3 V; (5)Output voltage (V2, V4): VL-0.3 to VM+0.3 V; (6)Output voltage (V1, V3): VL-0.3 to VH+0.3 V; (7)Output voltage (VSHT): VL-0.3 to VH+0.3 V; (8)Operational amplifier output current: ±5 mA; (9)Operating temperature: -25 to +85 ℃; (10)Storage temperature: -40 to +125 ℃.

Features

D1267AN features: (1)Substrate voltage (Vsub) generator is built-in: Variable Vsub in the range of 4.0V to 18.5V, Reduction of peripheral parts saves space; (2)Only two power supplies (+15V and ?.5V) are needed; (3)3.3V clock interface is acceptable; (4)20-pin SSOP package is used; (5)Low power consumption: 90mW (CXD1267N), 62mW (CXD1267AN), approximately 30% reduction.

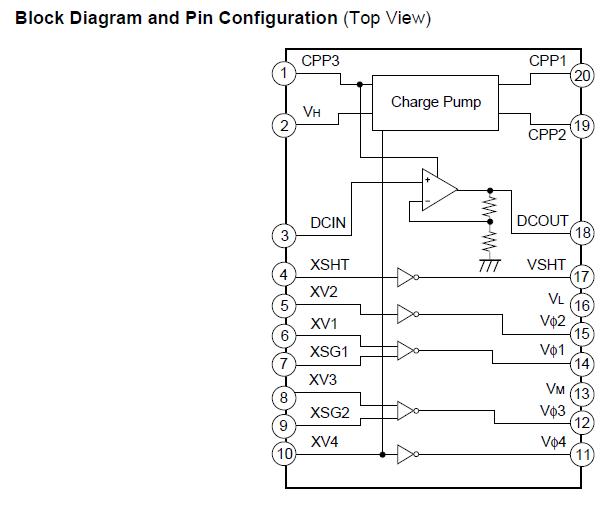

Diagrams
