Product Summary

The D2012 is a Si NPN transistor.

Parametrics

D2012 absolute maximum ratings: (1)Collector-Base Voltage BVCBO: 60 V; (2)Collector-Emitter Voltage BVCEO: 50 V; (3)Emitter-Base Voltage BVEBO: 7 V; (4)Collector Dissipation Tcase=25℃: 30 W; Tamb=25℃ PCM: 1.5 W; (5)Collector Current DC ICM: 3 A; Pulse Icp: 7 A; (6)Base Current IB: 0.6 A; (7)Junction Temperature Tj: +150 ℃; (8)Storage Temperature Tstg: -55~+150 ℃.

Features

D2012 features: (1)Collector-Emitter voltage: BVCBO= 60V; (2)Collector current up to 3A; (3)High hFE linearity.

Diagrams

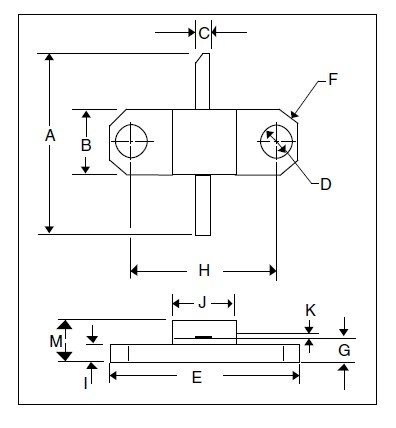

D2012 dimensions
