Product Summary

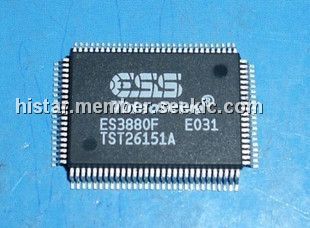

The ES3880F is a Video CD MPEG processor. The ES3880F is an ESS’third generation highly integrated, optimal quality, and costeffective single chip solution for Video CD players. The ES3880F is the best quality available for both video and audio and easily passes the highest graded level for the China VCD standard. The ES3880F integrates MPEG-1 video and audio processing and a full-fledged MPEG system bit stream parser. The ES3880F can be used as a microcontroller to provide system control, while also performing such basic video operations as arbitrary scaling and video filtering. The MPEG-1 system layer bitstream is decoded at up to 9 Mb/s at Standard Intermediate Format (SIF) resolution with a picture rate of 30 frames persecond. Two channels of MPEG-1 Layer 1 or Layer 2 audio are decoded simultaneously.
Features
ES3880F features: (1)Programmable Multimedia Processor (PMP architecture; (2)MPEG-1 audio/video decoder and system parser; (3)CD block decoder functions; (4)Video interlacing hardware; (5)Color Space Conversion (CSC); (6)STC interpretation and video/audio Phase-lock Loop (PLL); (7)Supports both 8- and 16-bit YUV output; (8)256/384 frame sampling frequency for audio system clock; (9)Programmable master clock for external audio DAC; (10)Independent bit clock for audio transmit and receive; (11)SmartScale video scaling supports X- and Y-axis interpolation; (12)SmartZoom supports 4X picture enlargement and reduction; (13)SmartStream supports audio and video bit stream error concealment.

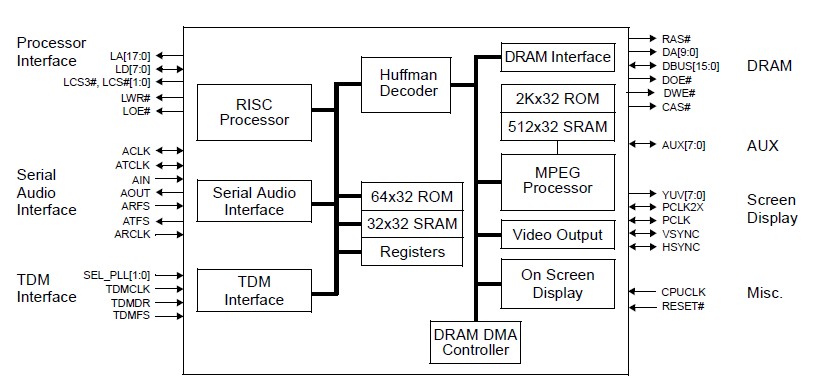

Diagrams
 |
