Product Summary
The Visba ES3883F video CD companion chip (CC) is the second-generation companion chip that provides an optimal system design for a video CD player when used with the Visba ES3883F video CD PC. The ES3883F Visba video CD CC integrates the CD-ROM controller (featuring direct servo control),as well as most of the required analog discrete components, into a simple, highly cost-effective design for a video CD player. The Visba video CD CC provides the best quality for both video and audio, and easily passes the highest graded level for the China VCD standard.
Features
ES3883F features:(1)Multistandard TV encoder: CCIR601 nonsquare operation; NTSC/PAL formats; Master video mode; 8-bit interface for YCrCb (4:2:2) input format; Simultaneous composite and S-video output; Interlaced operation; (2) Audio DACs:Two 16-bit sigma-delta DACs; Dual audio output, SNR better than 90 dB; Accepts I2S format data; Programmable functions; (3)Surround sound; (4)Remote control interface for power standby on/off; (5)Digitally controlled echo with up to 130-ms delay; (6) Dual microphone input; (7) Clock synthesizer (PLL):Based on 27-MHz crystal input; Generates required clocks for video encoder, audio ; (8)DAC, echo and surround sound, and video processor; (9) Device serial communication (DSC) port for command issued/register access; (10)Graphical user interface (GUI) and hyperlink; (11)Direct CD servo control; (12)Vocal assist; (13)Remote control; (14)Interrupt control; (15)Power management; (16) 100-pin PQFP; (17)Single 5V power supply.

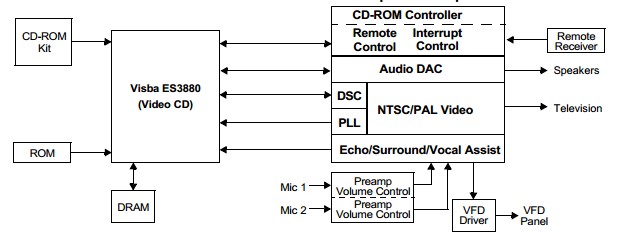

Diagrams
 |
