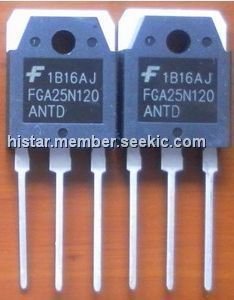

Product Summary

The FGA25N120 is an IGBT. It provides low conduction and switching losses. The FGA25N120 offers an solution for application such as induction heating (IH), motor control, general purpose inverters and uninterruptible power supplies (UPS).

Parametrics

FGA25N120 absolute maximum ratings: (1)VCES, Collector-Emitter Voltage: 1200 V; (2)VGES, Gate-Emitter Voltage: ± 20 V; (3)IC, Collector Current @ TC = 25℃: 40 A; Collector Current @ TC = 100℃: 25 A; (4)ICM, Pulsed Collector Current: 75 A; (5)PD, Maximum Power Dissipation @ TC = 25℃: 310 W; Maximum Power Dissipation @ TC = 100℃: 125 W; (6)TJ, Operating Junction Temperature: -55 to +150℃; (7)Tstg, Storage Temperature Range: -55 to +150℃; (8)TL, Maximum Lead Temp. for soldering Purposes, 1/8 inch from case for 5 seconds: 300℃.

Features

FGA25N120 features: (1)High speed switching; (2)Low saturation voltage: VCE(sat) = 2.5 V @ IC = 25A; (3)High input impedance.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FGA25N120AN
FGA25N120AN

Other


Data Sheet

Negotiable
FGA25N120AND
FGA25N120AND

Other


Data Sheet

Negotiable
FGA25N120ANTDTU
FGA25N120ANTDTU

Fairchild Semiconductor

IGBT Transistors Copak Discrete

Data Sheet

0-1: $2.68
1-25: $2.42
25-100: $2.20
100-250: $1.99
FGA25N120ANTDTU_F109
FGA25N120ANTDTU_F109

Fairchild Semiconductor

IGBT Transistors Copak Discrete

Data Sheet

0-220: $2.11
220-250: $1.91
250-500: $1.72
500-1000: $1.45
FGA25N120ANDTU
FGA25N120ANDTU

Fairchild Semiconductor

IGBT Transistors Copak Discrete

Data Sheet

Negotiable
FGA25N120ANTD
FGA25N120ANTD

Other


Data Sheet

Negotiable
FGA25N120FTD
FGA25N120FTD

Fairchild Semiconductor

IGBT Transistors 1200V 25A Field Stop Trench

Data Sheet

0-1: $3.03
1-25: $2.67
25-100: $2.48
100-250: $2.24
FGA25N120ANTU
FGA25N120ANTU

Fairchild Semiconductor

IGBT Transistors 25A/1200V/NPT

Data Sheet

Negotiable
