ISL6227CAZ

dual mobile-friendly PWM controller, TSSOP, GND - 0.3V to +28.0V, rDS(ON) Current Sensing

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.94~1.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.94~1.25

PartNumber:: ISL6227CAZ

Brand:: Intersil Corporation - Intersil | Pack: TSSOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Zou pinhui's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-07

From Other Seller

Part Number:ISL6227CAZ
US $0.94 - 1.25
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

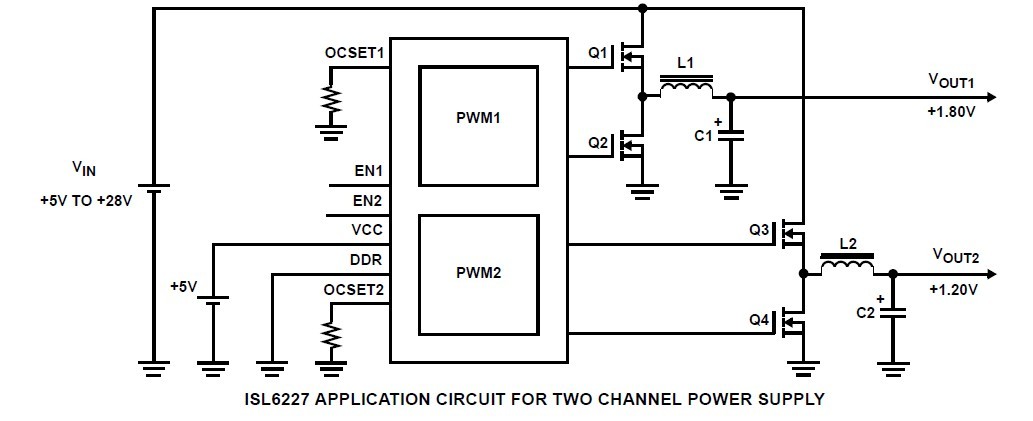

The ISL6227CAZ is a dual mobile-friendly PWM controller with DDR option. It delivers high efficiency precision voltage regulation from two synchronous buck DC/DC converters. It was designed especially to provide power regulation for DDR memory, chipsets, graphics and other system electronics in Notebook PCs. The wide input voltage range capability allows for voltage conversion directly from AC/DC adaptor or Li-Ion battery pack. The applications of the ISL6227CAZ include: Notebook PCs and Desknotes, Tablet PCs/Slates, Hand-Held Portable Instruments.

Parametrics

ISL6227CAZ absolute maximum ratings: (1)Bias Voltage, VCC: GND - 0.3V to +6.5V; (2)Input Voltage, VIN: GND - 0.3V to +28.0V; (3)PHASE, UGATE: GND -5V to 33.0V; (4)BOOT, ISEN: GND -0.3V to +33.0V; (5)BOOT with Respect to PHASE: + 6.5V; (6)All Other Pins: GND - 0.3V to VCC + 0.3V.

Features

ISL6227CAZ features: (1)Provides Regulated Output Voltage in the Range 0.9V to 5.5V; (2)Operates From an Input Battery Voltage Range of 5V to 28V or From 3.3V/5V System Rail; (3)Complete DDR1 and DDR2 Memory Power Solution with VTT Tracking VDDQ/2 and a VDDQ/2 Buffered Reference Output; (4)Flexible PWM or HYS Plus PWM Mode Selection with HYS Diode Emulation at Light Loads for Higher System Efficiency; (5)rDS(ON) Current Sensing.
