Product Summary

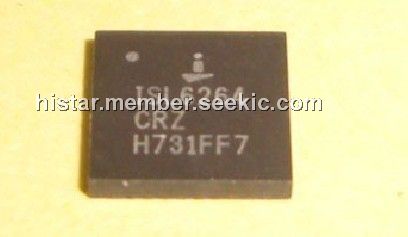

The ISL6264CRZ is a two-phase buck converter regulator with embedded gate drivers. The two-phase buck converter uses two interleaved channels to effectively double the output voltage ripple frequency and thereby reduce output voltage ripple amplitude with fewer components, lower component cost, reduced power dissipation, and smaller real estate area. The ISL6264CRZ can also be configured as single-phase controller for low power CPU applications.
Parametrics
ISL6264CRZ absolute maximum ratings: (1)Supply Voltage, VDD: -0.3 - +7V; (2)Battery Voltage, VIN: +28V; (3)Boot Voltage (BOOT): -0.3V to +33V; (4)Boot to Phase Voltage (BOOT-PHASE): -0.3V to +7V(DC)/ -0.3V to +9V (<10ns); (5)Phase Voltage (PHASE): -7V (<20ns Pulse Width, 10μJ); (6)UGATE Voltage (UGATE): PHASE -0.3V (DC) to BOOT; PHASE-5V (<20ns Pulse Width, 10μJ) to BOOT; (7)LGATE Voltage (LGATE): -0.3V (DC) to VDD+0.3V/ -2.5V (<20ns Pulse Width, 5μJ) to VDD+0.3V; (8)ALL Other Pins: -0.3V to (VDD +0.3V); (9)Open Drain Outputs, PGOOD, VR_TT#: -0.3 - +7V.
Features
ISL6264CRZ features: (1)Precision Two-phase Core Voltage Regulator: 0.5% system accuracy over temperature; (2)Voltage positioning with Adjustable Load Line and Offset; (3)Internal Gate Driver with 2A Driving Capability; (4)Dynamic Phase Adding/Dropping; (5)Differential Current Sensing: DCR or resistor; (6)Adjustable Reference-Voltage Offset; (7)Audio Filter Enable/Disable; (8)User Programmable Switching Frequency; (9)Differential Remote CPU Die Voltage Sensing; (10)Static and Dynamic Current Sharing; (11)Overvoltage, Undervoltage, and Overcurrent Protection.

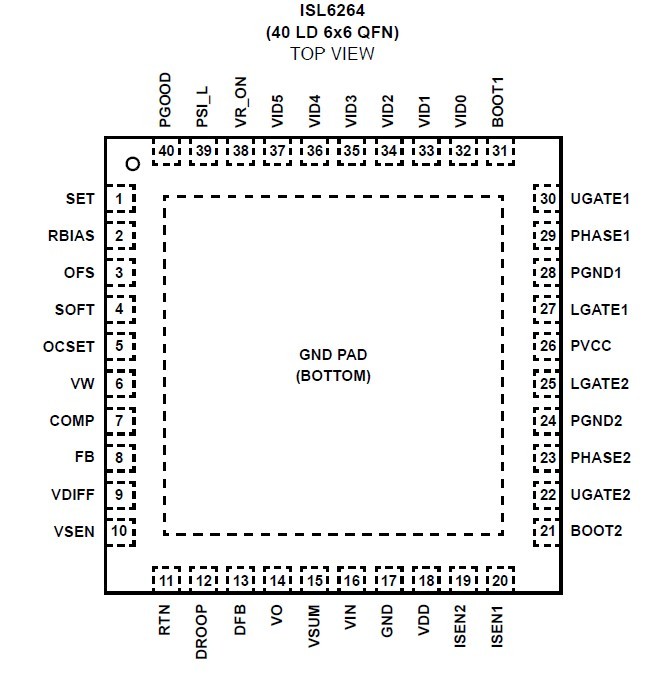

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISL6264CRZ |
|
IC CORE CTRLR TWO-PHASE 40-QFN |
Data Sheet |
|
|
||||||
|
ISL6264CRZ-T |
|
IC CORE CTRLR TWO-PHASE 40-QFN |
Data Sheet |
|
|
||||||
