ISL6566CRZ

three-phase PWM control IC, QFN 40, -0.3V to +6V, Overcurrent Protection

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.05~1.41 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.05~1.41

PartNumber:: ISL6566CRZ

Brand:: Intersil Corporation - Intersil | Pack: QFN | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Zou pinhui's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-08

From Other Seller

Part Number:ISL6566CRZ
US $1.05 - 1.41
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

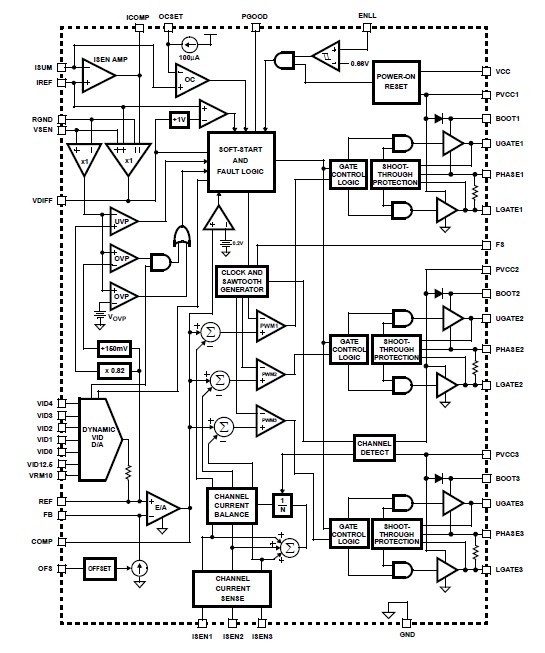

The ISL6566CRZ three-phase PWM control IC provides a precision voltage regulation system for advanced microprocessors. The integration of power MOSFET drivers into the controller IC marks a departure from the separate PWM controller and driver configuration of previous multiphase product families. By reducing the number of external parts, this integration is optimized for a cost and space saving power management solution. Outstanding features of the ISL6566CRZ include programmable VID codes compatible with Intel VRM9, VRM10, as well as AMD Hammer microprocessors.

Parametrics

ISL6566CRZ absolute maximum ratings: (1)Supply Voltage, VCC: -0.3V to +6V; (2)Supply Voltage, PVCC: -0.3V to +15V; (3)Absolute Boot Voltage, VBOOT: GND - 0.3V to GND + 36V; (4)Phase Voltage, VPHASE: GND - 0.3V to 15V (PVCC = 12); (5)Upper Gate Voltage, VUGATE: VPHASE - 0.3V to VBOOT + 0.3V; (6)Lower Gate Voltage, VLGATE: GND - 0.3V to PVCC + 0.3V; (7)Input, Output, or I/O Voltage: GND - 0.3V to VCC + 0.3V; (8)ESD Classification: Class I JEDEC STD.

Features

ISL6566CRZ features: (1)Integrated Multi-Phase Power Conversion: 1, 2, or 3-Phase Operation; (2)Accurate Load Line Programming: Uses Loss-Less Inductor DCR Current Sampling; (3)Variable Gate Drive Bias: 5V to 12V; (4)Overcurrent Protection; (5)Multi-tiered Overvoltage Protection; (6)Digital Soft-Start; (7)Selectable Operation Frequency up to 1.5MHz Per Phase; (8)Pb-Free Plus Anneal Available (RoHS Compliant).
