Product Summary

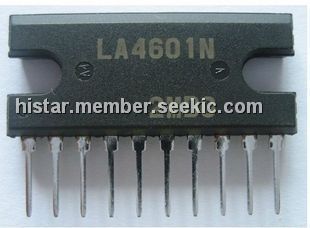

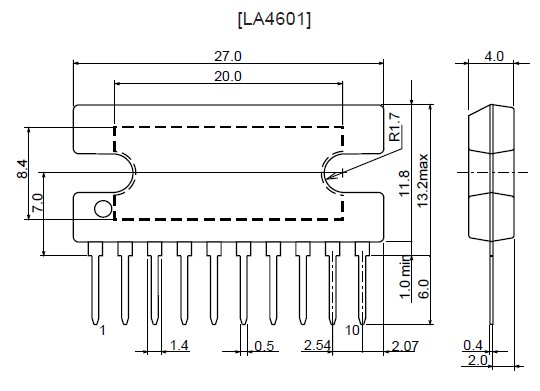

The LA4601N is a different-package version of the power amplifier with ultralow peripheral component count. Basic power supply spec is Vcc = 15V, but a 9V spec for operation without heatsink is also possible. BS capacitor, NF capacitor, and oscillation-stopping CR components of the LA4601N are incorporated into the IC circuitry.
Parametrics
LA4601N maximum ratings: (1)Maximum supply voltage Vccmax Rg=0: 24 V; (2)Allowable power dissipation Pd max With an arbitrary large heatsink: 25.0 W; (3)Thermal resistance q j-c: 3.0 ℃/W; (4)Operating temperature Topr: – 20 to +75℃; (5)Storage temperature Tstg: – 40 to +150℃.
Features
LA4601N features: (1)Pin compatible with the LA4600; (2)Heatsink not required for 9V version; (3)Output power VCC =15V/3W to 7.0W X 2; (4)Built-in stanby switching; (5)Built-in overheat protection (TSD).
