LD7575PS

current-mode PWM controller, SOP8, 30V, High-Voltage, 500mA, excellent power-saving operation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.42~0.56 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.42~0.56

PartNumber:: LD7575PS

Brand:: Leadtrend Technology Corporation - Leadtrend | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Zou pinhui's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-06

From Other Seller

Part Number:LD7575PS
US $0.42 - 0.56
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

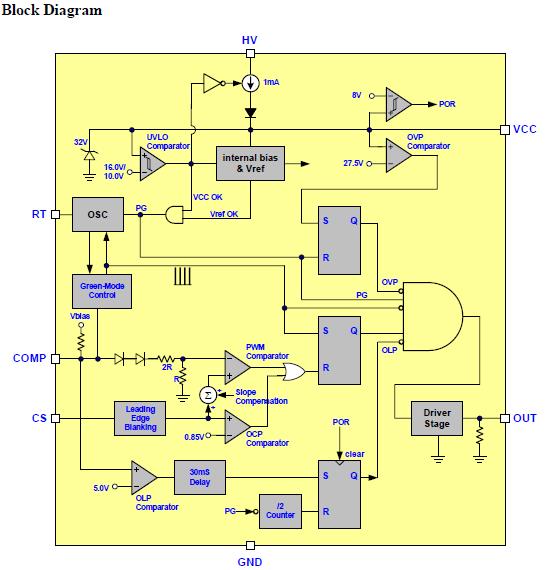

Product Summary

The LD7575PS is a current-mode PWM controller with excellent power-saving operation. The LD7575PS features a highvoltage current source to directly supply the startup current from bulk capacitor and further to provide a lossless startup circuit. The integrated functions such as the leading-edge blanking of the current sensing, internal slope compensation, and the small package provide the users a high efficiency, minimum external component counts, and low cost solution for AC/DC power applications. The applications of the LD7575PS include Switching AC/DC Adapter and Battery Charger, Open Frame Switching Power Supply and LCD Monitor/TV Power.

Parametrics

LD7575PS absolute maximum ratings: (1)Supply Voltage VCC: 30V; (2)High-Voltage Pin, HV: -0.3V~500V; (3)COMP, RT, CS: -0.3 ~7V; (4)Junction Temperature: 150℃; (5)Operating Ambient Temperature: -40℃ to 85℃; (6)Storage Temperature Range: -65℃ to 150℃; (7)Package Thermal Resistance: 160℃/W; (8)Power Dissipation: 400mW; (9)Lead temperature (Soldering, 10sec): 260℃; (10)ESD Voltage Protection, Human Body Model (except HV Pin): 3KV; (11)ESD Voltage Protection, Machine Model: 200V; (12)Gate Output Current: 500mA.

Features

LD7575PS features: (1)High-Voltage (500V) Startup Circuit; (2)Current Mode Control; (3)Non-Audible-Noise Green Mode Control; (4)UVLO (Under Voltage Lockout); (5)LEB (Leading-Edge Blanking) on CS Pin; (6)Programmable Switching Frequency; (7)Internal Slope Compensation; (8)OVP (Over Voltage Protection) on Vcc; (9)OLP (Over Load Protection); (10)500mA Driving Capability.
