Product Summary

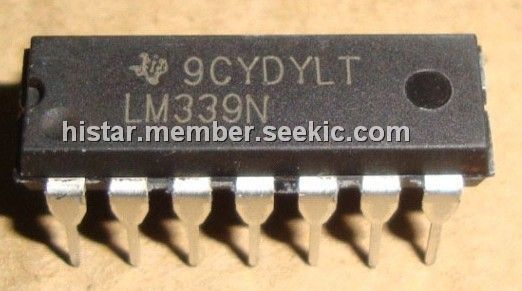

The LM339N consists of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2V to 36V, and VCC is at least 1.5V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs of LM339N can be connected to other open-collector outputs to achieve wired-AND relationships.
Parametrics
LM339N absolute maximum ratings: (1)Supply voltage, VCC: 36V; (2)Differential input voltage, VID : ±36V; (3)Input voltage range, VI (either input): -0.3V to 36V; (4)Output voltage, VO: 36V; (5)Output current, IO: 20mA; (6)Duration of output short circuit to ground: Unlimited; (7)Package thermal impedance, θJA: D package: 86℃/W; DB package: 96℃/W; N package: 80℃/W; NS package: 76℃/W; PW package: 113℃/W; (8)Package thermal impedance, θJC: FK package: 5.61℃/W; J package: 15.05℃/W; W package: 14.65℃/W; (9)Operating virtual junction temperature, TJ: 150℃; (10)Case temperature for 60 seconds: FK package: 260℃; (11)Lead temperature 1,6mm (1/16 inch) from case for 60 seconds: J package: 300℃; (12)Storage temperature range, Tstg: -65℃ to 150℃.
Features
LM339N features: (1)Single Supply or Dual Supplies; (2)Wide Range of Supply Voltage: Max Rating: 2V to 36V; Tested to 30V: Non-V Devices; Tested to 32V; V-Suffix Devices; (3)Low Supply-Current Drain Independent of Supply Voltage: 0.8mA Typ; (4)Low Input Bias Current: 25nA Typ; (5)Low Input Offset Current: 3nA Typ; (6)Low Input Offset Voltage: 2mV Typ; (7)Common-Mode Input Voltage Range Includes Ground; (8)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±36 V; (9)Low Output Saturation Voltage; (10)Output Compatible With TTL, MOS, and CMOS.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM339N |
Fairchild Semiconductor |
Comparator ICs Quad Comparator |
Data Sheet |
|
|
||||||||||||
|
LM339N/NOPB |
National Semiconductor (TI) |
Comparator ICs LOW PWR LOW OFFSET VLTG QUAD COMPARATOR |
Data Sheet |
|
|
||||||||||||
|
LM339N/PB |
National Semiconductor (TI) |
Comparator ICs QUAD COMPARATOR |
Data Sheet |
|
|
||||||||||||
|
LM339N_Q |
Fairchild Semiconductor |
Comparator ICs Quad Comparator |
Data Sheet |
Negotiable |
|
||||||||||||
|
LM339NE3 |
Texas Instruments |
Comparator ICs Quad Diff Comparator |
Data Sheet |
|
|
||||||||||||
|
LM339NE4 |
Texas Instruments |
Comparator ICs Quad Differential Comparator |
Data Sheet |
|
|
||||||||||||
|
LM339NG |
ON Semiconductor |
Comparator ICs 3-36V Qud Comparator Commercial Temp |
Data Sheet |
|
|
||||||||||||
|
LM339NSR |
Texas Instruments |
Comparator ICs Quad Differential Comparator |
Data Sheet |
|
|
||||||||||||
