LM4562MA

operational amplifier, SOP8, 36V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.22~5.63 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.22~5.63

PartNumber:: LM4562MA

Brand:: National Semiconductor - NS | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Zou pinhui's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-10

From Other Seller

Part Number:LM4562MA
US $4.22 - 5.63
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

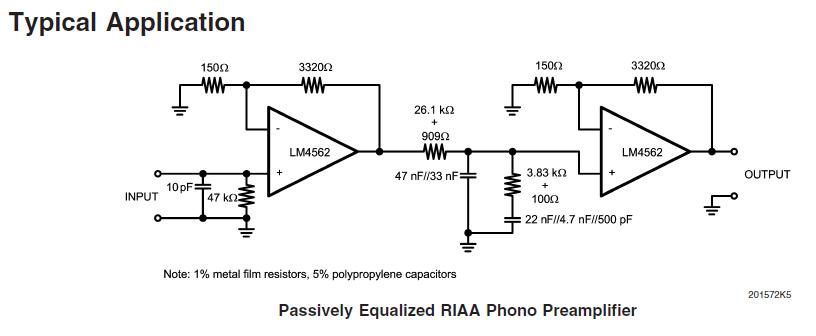

The LM4562MA is a ultra-low distortion, low noise, high slew rate operational amplifier, which is optimized and fully specified for high performance, high fidelity applications. Combining advanced leading-edge process technology with state-of-the-art circuit design, the LM4562MA audio operational amplifiers deliver superior audio signal amplification for outstanding audio performance. The applications of the LM4562MA include Ultra high quality audio amplification, High fidelity preamplifiers, High fidelity multimedia, State of the art phono pre amps, High performance professional audio, High fidelity equalization and crossover networks, High performance line drivers, High performance line receivers, High fidelity active filters.

Parametrics

LM4562MA absolute maximum ratings: (1)Power Supply Voltage (VS = V+ - V-): 36V; (2)Storage Temperature: -65℃ to 150℃; (3)Input Voltage: (V-) - 0.7V to (V+) + 0.7V; (4)Output Short Circuit: Continuous; (5)Power Dissipation: Internally Limited; (6)ESD Susceptibility: 2000V; (7)ESD Susceptibility: Pins 1, 4, 7 and 8: 200V, Pins 2, 3, 5 and 6: 100V; (8)Junction Temperature: 150℃; (9)Thermal Resistance: θJA (SO): 145℃/W, θJA (NA): 102℃/W, θJA (HA): 150℃/W, θJC (HA): 35℃/W; (10)Temperature Range: –40℃ ≤ TA ≤ 85℃ at TMIN ≤ TA ≤ TMAX; (11)Supply Voltage Range: ±2.5V ≤ VS ≤ ± 17V.

Features

LM4562MA features: (1)Easily drives 600Ω loads; (2)Optimized for superior audio signal fidelity; (3)Output short circuit protection; (4)PSRR and CMRR exceed 120dB (typ); (5)SOIC, DIP, TO-99 metal can packages.
