Product Summary
The MAX232CSE+ line driver/receiver is intended for all EIA/TIA-232E communication interfaces, particularly applications where ±12V is not available. The part of the MAX232CSE+ is especially useful in battery-powered systems, since their low-power shutdown mode reduces power dissipation to less than 5μW. The MAX232CSE+ uses no external components and are recommended for applications where printed circuit board space is critical.
Parametrics
MAX232CSE+ absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V-: +0.3V to +14V; (4)Input Voltages TIN: -0.3V to (VCC - 0.3V); (5)RIN: ±30V; (6)RIN: ±25V; (7)TOUT (Except MAX220): 15V; (8)TOUT: 13.2V; (9)Output Voltages; (10)TOUT: ±15V; (11)ROUT: -0.3V to (VCC + 0.3V); (12)Driver/Receiver Output Short Circuited to GND: Continuous; (13)Continuous Power Dissipation (TA = +70℃) 16-Pin Plastic DIP (derate 10.53mW/℃ above +70℃): 842mW.
Features
MAX232CSE+ features: (1)For Low-Voltage, Integrated ESD Applications: +3.0V to +5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers Using Four 0.1μF External Capacitors (MAX3246E Available in a UCSP. Package); (2)For Low-Cost Applications: ±15kV ESD-Protected, +5V, 1μA, Single RS-232 Transceiver with AutoShutdown.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

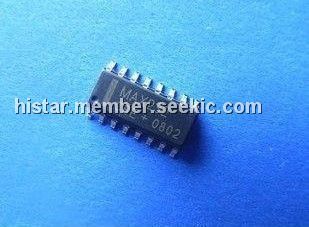

 MAX232CSE+ |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
|
MAX232CSE+T |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
