Product Summary
The OV7120 is a single-chip cmos vga color digital camera. The OV7120 CMOS Image sensor is single-chip video/imaging camera device designed to provide a high level of functionality in a single, small-footprint package. The devices incorporate a 640 x 480 image array capable of operating at up to 30 frames per second. Proprietary sensor technology utilizes advanced algorithms to cancel Fixed Pattern Noise (FPN), eliminate smearing, and drastically reduce blooming.
Parametrics
OV7120 absolute maximum ratings: (1)Operating temperature: 0 to 40 ℃; (2)Storage temperature: -40 to 125 ℃; (3)Operating humidity: TBD; (4)Storage humidity: TBD.
Features
OV7120 features: (1)326,688 pixels, 1/3” lens, VGA/QVGA format; (2)Progressive scan/Interlaced scan; (3)8-bit/16-bit Data output formats - YCrCb 4:2:2 ITU-656, IR 601 GRB 4:2:2 & RGB Raw Data; (4)Wide dynamic range, anti-blooming, zero smearing; (5)Electronic exposure/gain/white balance control; (6)Image controls - brightness, contrast, gamma, saturation, sharpness, windowing, hue, etc.; (7)Internal & external synchronization; (8)Line exposure option; (9)5 Volt operation, low power dissipation.

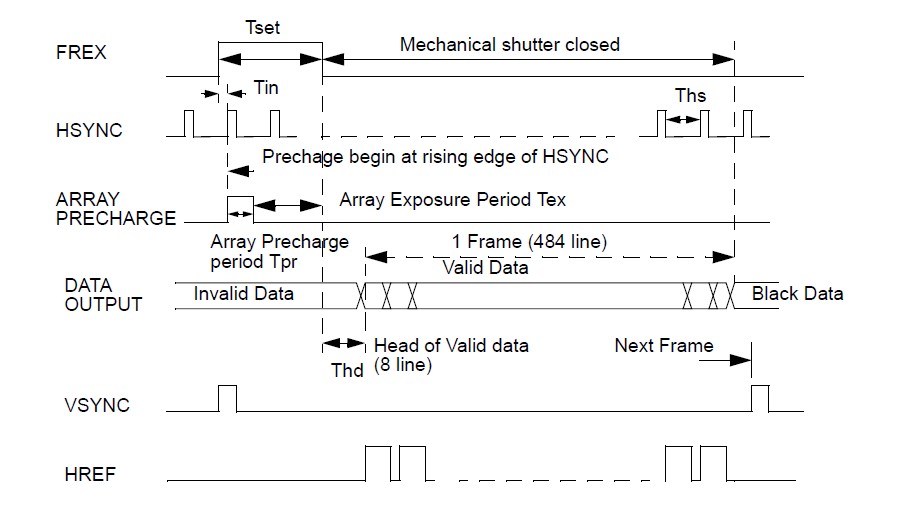

Diagrams
 |
