Product Summary
The PC817 is a high density mounting type photocoupler. The applications of the device include Computer terminals, System appliances, measuring instruments, Registers, copiers, automatic vending machines, Electric home appliances, such as fan heaters, etc and Signal transmission between circuits of different potentials and impedances.
Parametrics
PC817 absolute maximum ratings: (1)Input, Forward current, IF: 50 mA; Peak forward current, IFM: 1 A; Reverse voltage, VR: 6 V; Power dissipation, P: 70 mW; (2)Output, Collector-emitter voltage, VCEO: 35 V; Emitter-collector voltage, VECO: 6 V; Collector current, IC: 50 mA; Collector power dissipation, PC: 150 mW; (3)Total power dissipation, Ptot: 200 mW; (4)Isolation voltage, Viso: 5000Vrms; (5)Operating temperature, Topr: - 30 to + 100℃; (6)Storage temperature, Tstg: - 55 to + 125℃; (7)*3Soldering temperature, Tsol: 260℃.
Features
PC817 features: (1)current transfer ration (CTR: min 50% at IF=5mA, VCE=5V); (2)high isolation voltage between input and output (Viso: 5000Vrms); (3)compact dual-in-line package: 1-channel type; (4)regcgnized by UL, file No E64380.

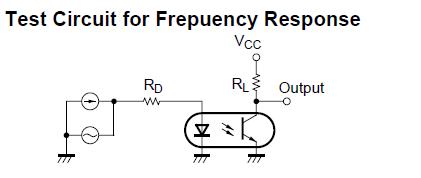

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PC817 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
PC81710NIP |
PHOTOCOUPLER LO IF TRAN 4-SMD |
Data Sheet |
Negotiable |
|
||||||||||||||
PC81710NIP0F |
Sharp Microelectronics |
Transistor Output Optocouplers SMT PC81710NSZ0F |
Data Sheet |
Negotiable |
|
|||||||||||||
PC81710NIP0X |
Sharp Microelectronics |
Transistor Output Optocouplers Photocoupler Lead Free |
Data Sheet |
|
|
|||||||||||||
PC81710NSZ |
PHOTOCOUPLER LO IF TRAN 4-DIP |
Data Sheet |
Negotiable |
|
||||||||||||||
PC81710NSZ0F |
Sharp Microelectronics |
Transistor Output Optocouplers Low If/High CMR PC817XJ0000F |
Data Sheet |
Negotiable |
|
|||||||||||||
PC81710NSZ0X |
Sharp Microelectronics |
Transistor Output Optocouplers Photocoupler Lead Free |
Data Sheet |
|
|
|||||||||||||
PC81710NSZJF |
Sharp Microelectronics |
Transistor Output Optocouplers High Temp Test PC81710NSZ0F |
Data Sheet |
Negotiable |
|
