Product Summary

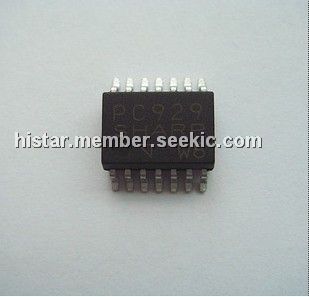

The PC929 is a Shortcircuit Protector Circuit. The applications of the device include IGBT control for inverter drive.

Parametrics

PC929 absolute maximum ratings: (1)Input, Forward current, IF: 20mA; Reverse voltage VR: 6V; (2)Output, Supply voltage,VCC: 35V;O1 output current, IO1: 0.1A; O1 peak output current, IO1P: 0.4A; O1 output voltage, IO2: 0.1A; O2 output current, IO2P: 0.4 A; O2 peak output current, VO1: 35 V; Power dissipation, PO: 500mW; Overcurrent detecting voltage, VC: VCC; Overcurrent detecting current, IC: 30mA; Error signal output voltage, VFS: VCC; Error signal output current IFS, 20: mA; (3)Total power dissipation, Ptot: 550mW; (4)Isolation voltage, Viso: 4 000Vrms; (5)Operating temperature, Topr: - 25 to + 80℃; (6)Storage temperature, Tstg: - 55 to + 125℃; (7)Soldering temperature, Tsol: 260℃ (for 10 sec).

Features

PC929 features: (1)Built-in IGBT shortcircuit protector circuit; (2)Built-in direct drive circuit for IGBT drive (Peak output current: IO1P, IO2P : MAX. 0.4A); (3)High speed response (tPLH, tPHL: MAX. 0.5 μ s); (4)High isolation voltage (Viso: 4000Vrms); (5)Half lead pin pitch (p=1.27 mm) package type; (6)Recognized by UL, file NO. E64380.

Diagrams

PC929 internal block diagram
