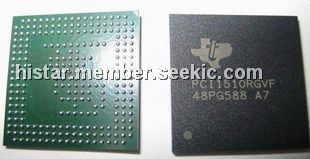

PCI1510RGVF

Product Summary

The Texas Instrument PCI1510RGVF, a 144-terminal or a 209-terminal single-slot CardBus controller designed to meet the PCI Bus Power Management Interface Specification for PCI to CardBus Bridges of the PCI1510RGVF, is an ultralow-power high-performance PCI-to-CardBus controller that supports a single PC card socket compliant with the PC Card Standard (rev. 7.2). The controller provides features that make it the best choice for bridging between PCI and PC Cards in both notebook and desktop computers. The PC Card Standard retains the 16-bit PC Card specification defined in the PCI Local Bus Specification and defines the 32-bit PC Card, CardBus, capable of full 32-bit data transfers at 33 MHz. The controller supports both 16-bit and CardBus PC Cards, powered at 5 V or 3.3 V, as required. The controller of the PCI1510RGVF is compliant with the PCI Local Bus Specification, and its PCI interface can act as either a PCI master device or a PCI slave device. The PCI bus mastering is initiated during CardBus PC Card bridging transactions. The controller of the PCI1510RGVF is also compliant with PCI Bus Power Management Interface Specification.

Parametrics

PCI1510RGVF absolute maximum ratings: (1)Vi Input Voltage: – 0.5 to VDD + 0.5 V; (2)II DC Input Current (any one input): ± 10 mA; (3)Pt ot Total Power Dissipation (per package): 200mW; (4)Dissipation per Output Transistor for Top = Full Package-temperature Range: 100mW; (5)To p Operating Temperature : HCC Types – 55 to + 125℃; (6)HCF Types: – 40 to + 85℃; (7)Ts tg Storage Temperature: – 65 to + 150 ℃; (8)VDD Supply Voltage :HCC Types – 0.5 to + 20V; (9)HCF Types: – 0.5 to + 18V.

Features

PCI1510RGVF features: (1)A 144-terminal low-profile QFP (PGE), 144-terminal MicroStar BGAball-grid array (GGU/ZGU) package, or a 209-terminal PBGA (GVF/ZVF) package; (2)2.5-V core logic and 3.3-V I/O with universal PCI interfaces compatible with 3.3-V and 5-V PCI signaling environments; (3)Integrated low-dropout voltage regulator (LDO-VR) eliminates the need for an external 2.5-V power supply; (4)Mix-and-match 5-V/3.3-V 16-bit PC Cards and 3.3-V CardBus Cards; (5)A single PC Card or CardBus slot with hot insertion and removal; (6)Parallel interface to TI TPS2211A single-slot PC Card power switch; (7)Burst transfers to maximize data throughput with CardBus Cards; (8)Interrupt configurations: parallel PCI, serialized PCI, parallel ISA, and serialized ISA; (9)Serial EEPROM interface for loading subsystem ID, subsystem vendor ID, and other configuration registers; (10)Pipelined architecture for greater than 130-Mbps throughput from CardBus-to-PCI and from PCI-to-CardBus.

Diagrams
