Product Summary

The R2S15900 is an optimum audio signal processor IC for TV. It has a 5ch input selector, surround/pseudo stereo, tone control(2band), output gain control and 2ch master volume. The R2S15900 can control all of these functions with I2C bus.

Parametrics

R2S15900 absolute maximum ratings: (1)Power supply VCC: 10 V; (2)Operating temperature Topr: –20 to +75 ℃; (3)Storage temperature Tstg: –40 to +125 ℃.

Features

R2S15900 features: (1)Volume: 0 to –84dB, –∞/ 1dB step Each channel is independence control; (2)Input selector: 5 input selector + MUTE; (3)Rec output: 2 Rec output; (4)Tone control Bass: –15dB to +15dB/ 1dB step; (5)Treble: –15dB to +15dB/ 1dB step; (6)Surround/ Pseudo stereo: Surround <Low/ High> Pseudo Stereo; (7)Mode selector: Bypass/ Tone / Tone & Pseudo Stereo or Surround; (8)Output gain control 0dB/ +4.5dB; (9)MCU interface I2C-BUS control.

Diagrams

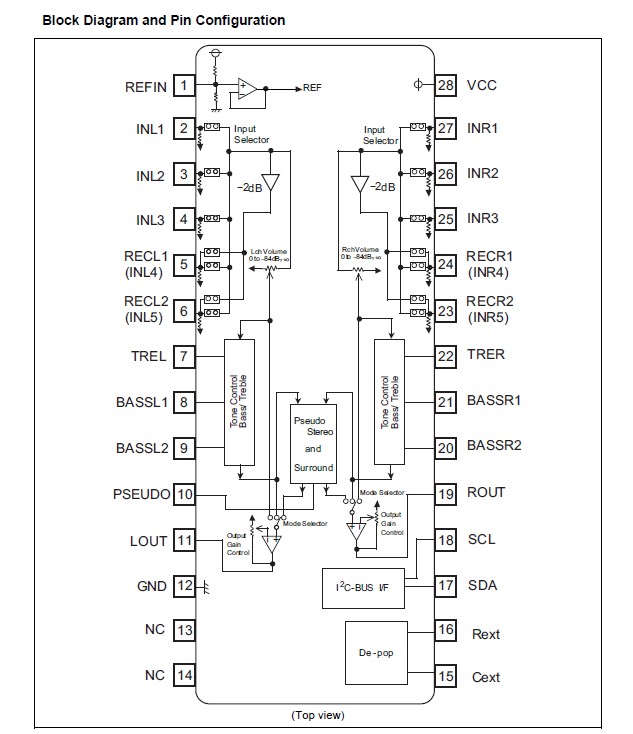

R2S15900 Block Diagram and Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

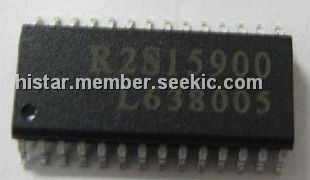

R2S15900SP
R2S15900SP
Other

Data Sheet
Negotiable
