Product Summary

The RT9619A is a high frequency, dual MOSFET driver specifically designed to drive two power N-Channel MOSFETs in a synchronous-rectified buck converter topology. The driver RT9619A combined with Richtek series of Multi-Phase Buck PWM controller form a complete corevoltage regulator solution for advanced micro-processors. The RT9619A drives both the lower/upper gate in a synchronous-rectifier bridge with 12V. This drive-voltage flexibility provides the advantage of optimizing applications involving trade-offs between switching losses and conduction losses.

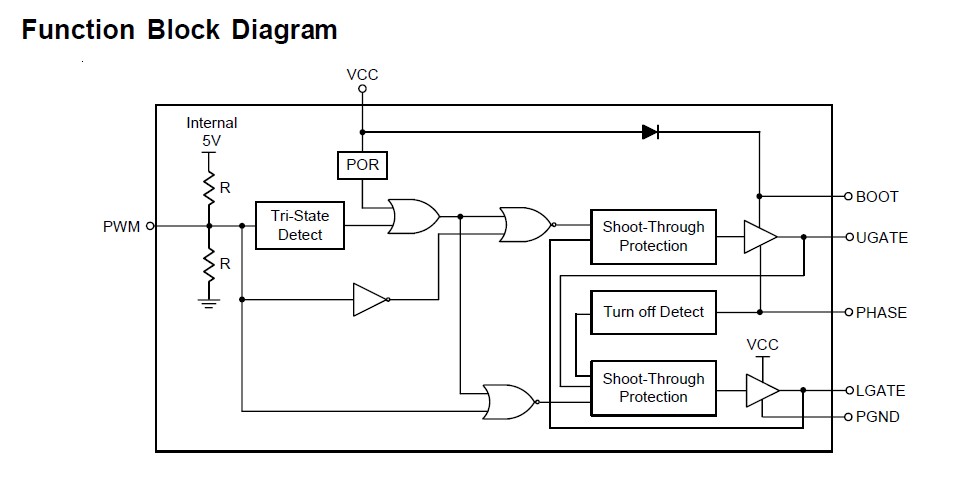

Parametrics

RT9619A absolute maximum ratings: (1)Supply Voltage, VCC: -0.3V to 15V; (2)BOOT to PHASE: -0.3V to 15V; (3)BOOT to GND DC: -0.3V to VCC + 15V < 200ns: -0.3V to 42V; (4)PHASE to GND DC: -5V to 15V< 200ns: -10V to 30V; (5)LGATE DC: GND -0.3V to VCC + 0.3V < 200ns: -2V to VCC + 0.3V; (6)UGATE: VPHASE -0.3V to VBOOT + 0.3V < 200ns: VPHASE -2V to VBOOT + 0.3V; (7)PWM Input Voltage GND: -0.3V to 7V; (8)Power Dissipation, PD @ TA = 25℃; (9)SOP-8: 0.625W; (10)Package Thermal Resistance SOP-8, θJA: 160℃/W; (11)Lead Temperature (Soldering, 10 sec.): 260℃; (12)Storage Temperature Range: -40 to 150℃; (13)ESD Susceptibility HBM (Human Body Mode): 2kV MM (Machine Mode): 200V.

Features

RT9619A features: (1)Drives Two N-Channel MOSFETs; (2)Adaptive Shoot-Through Protection; (3)Embedded Boot Strapped Diode; (4)Supports High Switching Frequency; (5)Fast Output Rise Time; (6)Small SOP-8 Package; (7)Tri-State Input for Bridge Shutdown; (8)Supply Under Voltage Protection; (9)Upper MOSFET Direct Shorted Protection; (10)RoHS Compliant and 100% Lead (Pb)-Free.
