Product Summary

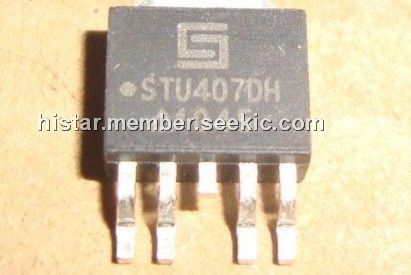

The STU407DH is a dual Enhancement mode field effect transistor ( N and P channel).
Parametrics
STU407DH absolute maximum ratings: (1)Drain-Source Voltage VDS: N-channel: 40V; P-channel: -40V; (2)Gate-S ource Voltage VGS VGS: N-channel: ±20V; P-channel: ±20V; (3)Drain Current-Continuous @ Tc 25℃ ID: N-channel: 16A; P-channel: -12A; 70℃ ID: N-channel: 13.8A; P-channel: -10A; (4)-Pulsed IDM: N-channel: 50A; P-channel: -50A; (5)Drain-S ource Diode Forward Current IS: N-channel: 8A; P-channel: -6A; (6)Maximum Power Dissipation TC=25℃, PD: 11W; TC=70℃: 7.7W; (7)Operating Junction and S torage Temperature Range TJ , TSTG: -55 to 175℃.
Features
STU407DH characteristics: (1)On the conditions of VGS =0V, ID =250μA, Drain-Source Breakdown Voltage BVDSS: min=40V; (2)On the conditions of DS =32V, VGS =0V, Zero Gate Voltage Drain Current IDSS: max=1μA; (3)On the conditions of VGS =±20V, VDS =0V, Gate-Body Leakage IGSS: ±10μA.

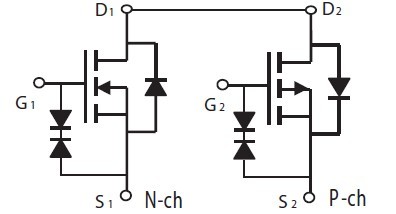

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 STU407DH |
Other |
|
Data Sheet |
Negotiable |
|
||||
