Product Summary
4502C is P&N-channel 30V(D-S) MOSFET. It utilizes High Cell Density process. Low rDS(on) assures
minimal power loss and conserves energy, making this device ideal for use in power management
circuitry. Typical applications of the 4502C are PWMDC-DC converters, power management in portable and battery-powered products such as computers, printers, battery charger, telecommunication power system, and telephones power system.
Parametrics
4502C absolute maxing ratings: (1)VDS Drain-Source Voltage: N-channel=30V, P-channel=-30V; (2)VGS Gate-Source Voltage: N-channel=20V, P-channel=-25V; (3)ID Continuous Drain Current TA=25℃: N-channel=10V, P-channel=-8.5V; TA=70℃: N-channel=8.1V, P-channel=-6.8V; (4)IDM Pulsed Drain Current: N-channel=±50A, P-channel=±50A; (5)IS Continuous Source Current (Diode Conduction): N-channel=2.3A, P-channel=-2.1A; (6)PD Power Dissipation TA=25℃: N-channel=2.1W, P-channel=2.1W; TA=70℃: N-channel=1.3W, P-channel=1.3W; (7)TJ, TSTG Operating Junction and Storage Temperature Range: P-channel=-55 to 150℃.
Features

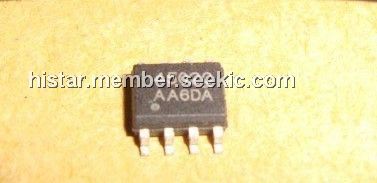

4502C features: (1)Low rDS(on) Provides Higher Efficiency and Extends Battery Life; (2)Miniature SO-8 Surface Mount Package Saves Board Space; (3)High power and current handling capability; (4)Low side high current DC-DC Converter applications.
