Product Summary

The A6069H is a power IC for switching power supplies, incorporating a power MOSFET and a current-mode type PWM controller IC. The applications of the A6069H include: (1)Battery Chargers; Mobile Phones, Digital Cameras, Camcorders, Electric Shavers, Emergency/Inducement Lights etc.; (2)Standby Power Supplies; LCD-TVs, PDP-TVs, Desk-Top PCs, LBPs, Audio Equipment, etc.; (3)Small SMPSs; Ink Jet Printers, BD/DVD Players, CD Players, Set-Top-Boxes, etc.; (4)Auxiliary Power Supplies for Controllers; Air Conditioners, Refrigerators, Washing Machines, Dish Washers, etc.

Parametrics

A6069H specifications: (1)fosc(kHz): 100; (2)MOSFET VDSS MIN (V): 700; (3)RDS(ON) MAX(Ω): 6.0; (4)POUT 230VAC/Universal: 10W/8W.

Features

A6069H features: (1)Current-Mode Type PWM Control; (2)Built-in Random Switching Function The function reduces the EMI noise and enables a simplified (low-cost) EMI filter, by the slight- random-change of PMW frequency fOSC. ; (3)Auto-Standby Function: The burst-oscillation enables the low standby power. Input Power PIN < 25mW at no load; (4)Built-in Startup Circuit, enabling low power consumption; (5)Brown-In / Brown-Out Function The function enables the oscillation start/stop by externally rated input voltage and makes protections at low input voltage.

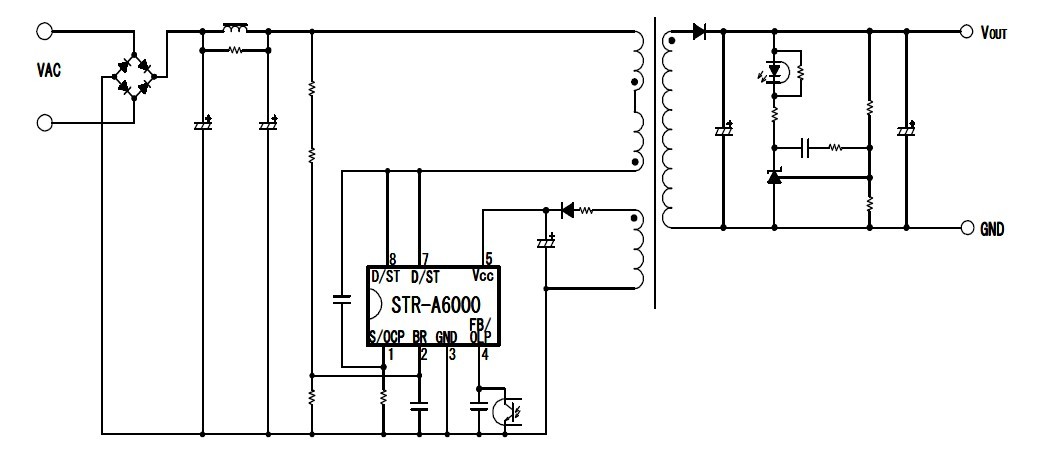

Diagrams
