A6159

PRC topology regulator, DIP7, 35 V, 650 V, Two Operational Modes, Low Start-Up Current, Low Operating Current

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.82~1.09 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.82~1.09

PartNumber:: A6159

Brand:: Sanken electric - Sanken | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Zou pinhui's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-07

From Other Seller

Part Number:A6159
US $0.82 - 1.09
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

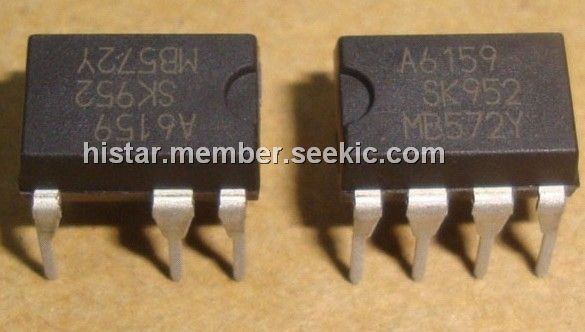

The A6159 is a PRC topology (fixed off-time) regulator which is specifically designed to satisfy the requirements for increased integration and reliability in flyback converters. It incorporates a primary control and drives circuit with avalanche-rated power MOSFETs. The A6159 features higher switching current and avalanche-energy ratings and lower on-resistance. it is provided in an 8-pin mini-DIP plastic package.

Parametrics

A6159 absolute maximim ratings: (1)Control Supply Voltage, VCC: 35 V; (2)Drain-Source Voltage, VDSS: 650 V; (3)Drain Switching Current, ID: 1.8 A*; (4)Peak Drain Switching Current, IDM: 1.8 A; (5)Single-Pulse Avalanche Energy, EAS: 24 mJ; (6)Start-Up-Pin Voltage Range, Vstartup: –0.3 V to +600 V; (7)OCP Voltage Range, VOCP: –0.5 V to +6 V; (8)FB/OLP Voltage Range, VFB/OLP: –0.5 V to +10 V; (9)Package Power Dissipation, PD control (VCC × ICC(ON)): 0.15 W; MOSFET (VDSS × ID): 1.35 W; total: 1.5 W.
