Product Summary
The NH82801FBM is designed as one member of the intel I/O controller hub 6 (ICH6) family. It is ICH6 mobile (ICH6-M).
Parametrics
Absolute maximum ratings: (1) Its voltage on any 3.3V pin with respect to ground would be from -0.5 to Vcc3_3+0.5V. (2) Its voltage on any 5V tolerant pin with respect to ground (V5REF = 5V) would be from -0.5V to V5REF+0.5V. (3) Its 1.5V supply voltage with respect to Vss would be from -0.5 to 2.1V. (4) Its 3.3V supply voltage with respect to Vss would be from -0.5V to 4.6V. (5) Its 5.0V supply voltage with respect to Vss would be from -0.5V to 5.5V. (6) Its V_CPU_IO supply voltage with respect to Vss would be from 0.8V to 1.75V.
Features
Features: (1) Direct media interface which means 10Gb/s each direction, full duplex and transparent to software. (2) PCI express which means 4 PCI express root ports, fully PCI express 1.0a compliant, two virtual channel support for full isochronous data transfers, support for full 2.5 Gb/s bandwidth in each direction per x1 lane and module based hot-plug supported. (3) PCI bus Interface which means supports PCI rev 2.3 specification at 33 MHz, seven available PCI REQ/GNT pairs, support for 64-bit addressing on PCI using DAC protocol. (4) Integrated serial ATA host controller. (5) Intel IDE controller. (6) Intel high definition audio interface. (7) USB 2.0. (8) Integrated LAN controller. (9) AC-link for audio and telephony CODECs. (10) power management logic. (11) External glue integration. (12) Enhanced DMA controller. (13) High precision event timers. (14) Timers based on 82C54. (15) real time clock.

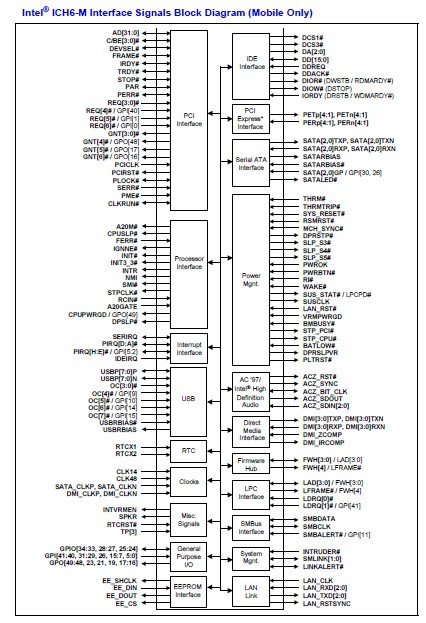

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|

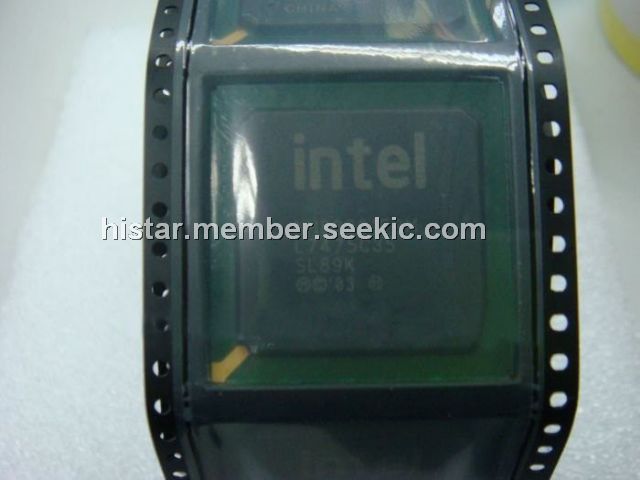

NH82801FBM SL89K |
Other |
Data Sheet |
Negotiable |
|
||||||||
