Product Summary

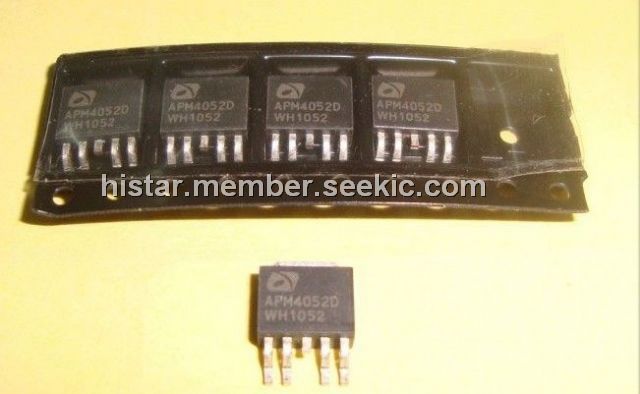

The APM4052 is a N-channel enhancement mode MOSFET, anpec electronics coropration. The APM4052 is suitable for the inventer application in LCM and LCD TV.
Parametrics
APM4052 absolute maximum ratings: (1)VDSS Drain-Source Voltage 40; (2)VGSS Gate-Source Voltage ±20V; (3)TJ Maximum Junction Temperature 150 ℃; (4)TSTG Storage Temperature Range -55 to 150 ℃; (5)IS Diode Continuous Forward Current TC=25℃ 20 A; (6)RqJC Thermal Resistance-Junction to Case 2.5 ℃/W; (7)RqJA Thermal Resistance-Junction to Ambient 50 ℃/W.
Features
APM4052 features: (1)40V/20A, RDS(ON)= 29mW (typ.) @ VGS= 10V; RDS(ON)= 45mW (typ.) @ VGS= 5V; (2)Super HighDense CellDesign; (3)Reliable and Rugged; (4)Lead FreeAvailable (RoHS Compliant).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 APM4052DU4 |
Other |
|
Data Sheet |
Negotiable |
|
||||
