Product Summary

The ES3890F single-chip Video CD (VCD) processor is the latest innovation of ESS family of VCD chips for VCD players. The Visba ES3890F is based on the ESS Programmable Multimedia Processor (PMP) architecture consisting of a 32-bit video controller and a 64-bit video processor and it integrates the TV-encoder,thus eliminating the need for a VCD companion chip.The ES3890F is available in an industry-standard 128-pin Plastic Quad Flat Pack (PQFP) device package.

Features

ES3890F features:(1)ESS proprietary dual CPU PMP core;(2)Integrated TV-encoder;(3)VCD 1.1 and 2.0 compatible; (4)Composite or S-video output; (5)CCIR601 non-square operation;(6)NTSC/PAL formats;(7)Video error concealment;(8)SmartBright feature for adjusting brightness of movies;(9)during playback; (10)Video scaling and X- and Y-axis interpolation; (11)Motion pan and zoom to 4X magnification; (12)Video CD 2.0 Playback Control; (13)JPEG photos decoding and playback; (14)Kodak Picture CD and Fujicolor CD JPEG image viewing; (15)SmartColor feature for adjusting skin color of JPEG; (16)photos during viewing; (17)Trick mode functions; (18)Dual microphones inputs; (19)7-band audio graphic equalizer; (20)Programmable master clock for external audio DAC; (21)Digital echo up to 168 ms delay; (22)Karaoke voice recording; (23)Karaoke scoring; (24)CD+G Karaoke; (25)Karaoke and subtitle functions;(26)MP3 audio playback; (27)CD-DA with CD-Text; (28)Vocal reverb simulates a theater acoustic environment; (29)Windows Media Audio decoding; (30)Flexible design for 512 kB or 2 MB memory; (31)Direct servo control; (32)Remote control interface for power standby on/off; (33)4-bit On-Screen Display controller with 3-bit blending; (34)supports 4 colors in 8 degrees of transparency; (35)Power management; (36)Optional lead-free leads using 98%-Sn/2%-Cu or 98%-Sn/2%-Bi with ES3890F.

Diagrams

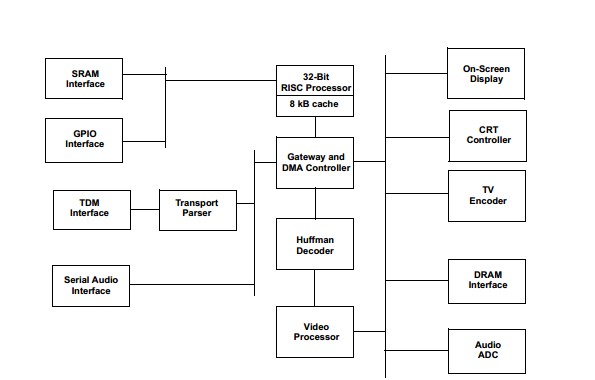

ES3890F Block Diagram
