Product Summary

The ES6629F is a highly integrated single-chip DVD solution that integrates read channel, ECC, Servo DSP, MCU, and MPEG-2 decoder that has a state-of-the-art 480p/576p progressive-scan video feature to provide brilliant and sharp, flicker-free video output, and S/PDIF input and output support. The ES6629F performs audio/video stream data processing, TV encoding, Macrovision copy protection, DVD system navigation, system control, and housekeeping functions.

Parametrics

ES6629F absolute maximum ratings: (1)Voltage on any pin relative to VSS: –0.3V to +0.3V; (2)Voltage on VCC Supply Relative to VSS: –0.3V to 4.0V; (3)Power Dissipation: 500mW; (4)Storage Temperature: –40°C to 125°C; (5)Operating Temperature: -20°C to +80°C; (6)Soldering Temperature and Time: 260°C, 10sec (Lead only)°C.

Features

ES6629F features: (1)Single-chip DVD processor incorporating all front-end and back-end functions; (2)Unified memory architecture.; (3)Proven focusing, sledding, tracking, and CLV/CAV spindle servo control; (4)Proven ECC, EFM/EFM+ demodulation, and EDC circuit; (5)Built-in ADCs and DACs for servo control signals; (6)Direct interface to the ES6603 servo AFE chip.; (7)Integrated NTSC/PAL encoder with pixel-adaptive de-interlacer and five 10-bit 54 MHz video DACs; (8)DVD-Video, DVD-VR, VCD 1.1 and 2.0, and SVCD; (9)Media playback with CD-ROM, CD-R/RW, DVD-R/RW, and DVD+R/RW; (10)Up to 7.1 channel audio outputs; (11)Direct interface of 16-bit DRAM up to 128-Mb capacity; (12)Direct interface for up to 4 banks of 8-bit EPROM or Flash EPROM for up to 4 MB per bank; (13)Macrovision 7.1 for NTSC/PAL interlaced video.

Diagrams

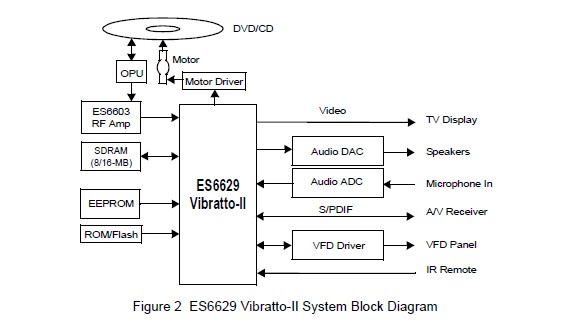

ES6629F block diagram
