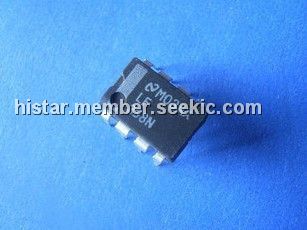

LF398N

Supply Voltage ±18V, Monolithic Sample-and-Hold Circuit, Power Dissipation 500 mW, 0.5 mV

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.30

PartNumber:: LF398N

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Zou pinhui's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-10

From Other Seller

Part Number:LF398N
US $1.00 - 1.30
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LF398N is a monolithic sample-and-hold circuit which utilizes BI-FET technology to obtain ultra-high dc accuracy with fast acquisition of signal and low droop rate. Operating as a unity gain follower, dc gain accuracy is 0.002% typical and acquisition time is as low as 6 μs to 0.01%. A bipolar input stage is used to achieve low offset voltage and wide bandwidth. Input offset adjust is accomplished with a single pin, and does not degrade input offset drift. The wide bandwidth of the LF398N allows the LF198 to be included inside the feedback loop of 1 MHz op amps without having stability problems. Input impedance of 1010W allows high source impedances to be used without degrading accuracy. P-channel junction FET are combined with bipolar devices in the output amplifier to give droop rates as low as 5 mV/min with a 1 μF hold capacitor. The JFET have much lower noise than MOS devices used in previous designs and do not exhibit high temperature instabilities. The overall design of the LF398N guarantees no feed-through from input to output in the hold mode, even for input signals equal to the supply voltages.

Parametrics

LF398N absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Power Dissipation (PackageLimitation): 500 mW; (3)Operating Ambient Temperature Range: -55℃ to +125℃; (4)Storage Temperature Range: -65℃ to +150℃; (5)Input Voltage: Equal to Supply Voltage; (6)Logic To Logic Reference Differential Voltage: +7V, 30V; (7)Output Short Circuit Duration: Indefinite.

Features

LF398N features: (1)Operates from ±5V to ±18V supplies; (2)Less tha10 μs acquisitiotime; (3)TTL, PMOS, CMOS compatible logic input; (4)0.5 mV typical hold step at Ch = 0.01 μF; (5)Low input offset; (6)0.002% gaiaccuracy; (7)Low output noise ihold mode; (8)Input characteristics do not change during hold mode; (9)High supply rejectioratio isample or hold; (10)Wide bandwidth; (11)Space qualified, JM38510.
