Product Summary
The LM386N-1 is a power amplifier designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value from 20 to 200. The inputs of the LM386N-1 are ground referenced while the output automatically biases to one-half the supply voltage. The quiescent power drain is only 24 milliwatts when operating from a 6 volt supply, making the LM386N-1 ideal for battery operation.
Parametrics
LM386N-1 absolute maximum ratings: (1)Supply Voltage(LM386N-1, -3, LM386M-1): 15V; (2)Supply Voltage (LM386N-4): 22V; (3)Package Dissipation (Note 3), (LM386N): 1.25W; (LM386M) 0.73W; (LM386MM-1) 0.595W; (4)Input Voltage: ±0.4V; (5)Storage Temperature: -65℃ to +150℃; (6)Operating Temperature: 0℃ to +70℃; (7)Junction Temperature: +150℃.
Features
LM386N-1 features: (1)Battery operation; (2)Minimum external parts; (3)Wide supply voltage range: 4V–12V or 5V–18V; (4)Low quiescent current drain: 4mA; (5)Voltage gains from 20 to 200; (6)Ground referenced input; (7)Self-centering output quiescent voltage; (8)Low distortion: 0.2% (AV = 20, VS = 6V, RL = 8W, PO=125mW, f = 1kHz); (9)Available i8 piMSOP package.

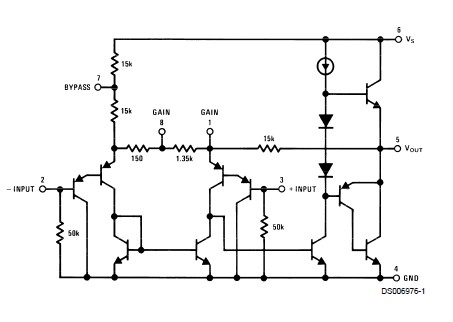

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM386N-1 |
National Semiconductor (TI) |
Audio Amplifiers |
Data Sheet |
|
|
||||||||||||
 |
LM386N-1/NOPB |
National Semiconductor (TI) |
Audio Amplifiers LOW VLTG AUDIO PWR AMP |
Data Sheet |
|
|
||||||||||||
