Product Summary

The PT2313L is a four-channel digital control audio processor utilizing CMOS Technology. Volume, Bass, Treble and Balance, Front/Rear Fader Processor are incorporated into a single chip. Loudness Function and Selectable Input Gain of the PT2313L are also provided to build a highly effective electronic audio processor having the highest performance and reliability with the least external components. All functions of the PT2313L are programmable using the I2C Bus. The pin assignments and application circuit of the PT2313L are optimized for easy PCB layout and cost saving advantage for audio application. Housed in a 28-pin DIP/SO Package, the PT2313L is pin-to-pin compatible with TDA7313 and is very similar in performance with the later.

Parametrics

PT2313L maximum ratings: (1)The Resistor Range: 2.0K Ohms to 3.6 K Ohms.; (2)Resistor Recommended Value: 2.4 K Ohms.

Features

PT2313L features: (1)CMOS Technology; (2)Least External Components; (3)Treble and Bass Control; (4)Loudness Function; (5)3 Stereo Inputs with Selectable Input Gain; (6)Input/Output for External Noise Reduction System/Equalizer; (7)4 Independent Speaker Controls for Fader and Balance; (8)Independent Mute Function; (9)Volume Control in 1.25 dB/step; (10)Low Distortion; (11)Low Noise and DC Stepping; (12)Controlled by I2C Bus Micro-Processor Interface; (13)Pin-to-pin Compatible with TDA7313.

Diagrams

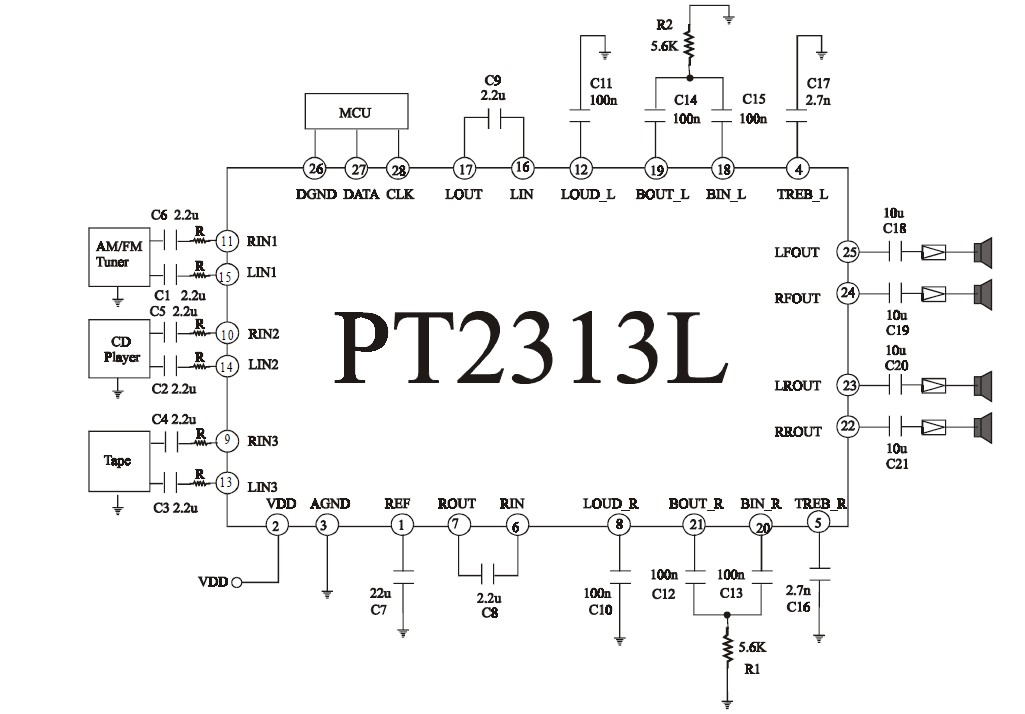

PT2313L Application Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PT2313L
PT2313L

Other


Data Sheet

Negotiable
