Product Summary

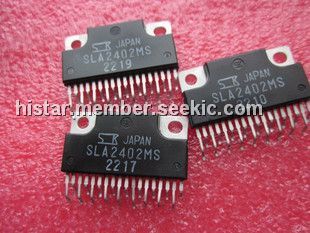

The SLA2402MS is a Dropper Type Regulator IC with Output ON/OFF Control.

Parametrics

SLA2402MS absolute maximum ratings: (1)DC Input Voltage: 35 V; (2)Output Control Terminal Voltage: VIN V; (3)Output Current: 1.0 A; (4)Power Dissipation: 18 W; (5)Junction Temperature: -40 to +125 ℃; (6)Operating Temperature: -40 to +100 ℃; (7)Storage Temperature: -40 to +125 ℃; (8)Junction to Case Thermal Resistance: 5.5 ℃/W; (9)Junction to Ambient-Air Thermal Resistance: 66.7 ℃/W.

Features

SLA2402MS features: (1)Output current of 1.0A; (2)5-terminal type <output on/off control, variable output voltage (rise only)>; (3)Voltage accuracy of ±2%; (4)Low dropout voltage ≤ 1V at IO ≤ 1.0A, ≤ 0.5V at IO ≤ 0.4A; (5)Built-in overcurrent, overvoltage and thermal protection circuits; (6)Withstands external electromagnetic noises; (7)TO220 equivalent full-mold package.

Diagrams
