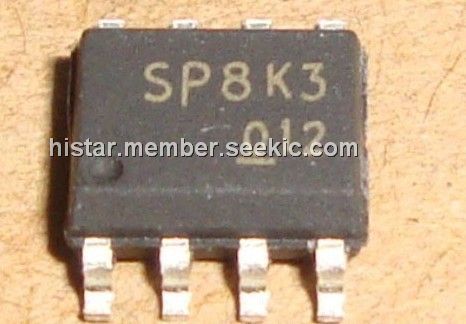

Product Summary

The SP8K3 is a transistor. It can be used in Power switching, DC / DC converter.

Parametrics

SP8K3 absolute maximum ratings: (1)Drain-source voltage VDSS: 30V; (2)Gate-source voltage VGSS: 20V; (3)Drain current Continuous: ID: ±7.0A; Pulsed IDP: ±28A; (4)Source current(Body diode) Continuous IS: 1.6A; Pulsed ISP: 6.4A; (5)Total power dissipation PD: 2W; (6)Channel temperature Tch: 150℃; (7)Storage temperature Tstg: -55 to +150℃.

Features

SP8K3 features: (1)Low on-resistance; (2)Built-in G-S Protection Diode; (3)Small and Surface Mount Package (SOP8).

Diagrams

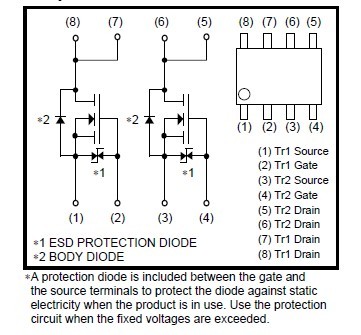

SP8K3 equivalent circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SP8K3
SP8K3
Other

Data Sheet
Negotiable
SP8K31TB1
SP8K31TB1

MOSFET 2N-CH 60V 3.5A 8SOIC
Data Sheet
0-2500: $0.30
SP8K3TB
SP8K3TB

MOSFET 2N-CH 30V 7A 8-SOIC
Data Sheet
0-1: $0.88
1-25: $0.69
25-100: $0.62
100-250: $0.54
250-500: $0.49
500-1000: $0.38
SP8K3FU6TB
SP8K3FU6TB
ROHM Semiconductor
MOSFET 30V, 7A; DC-DC Conv. Switch, Dual
Data Sheet
0-2500: $0.35
