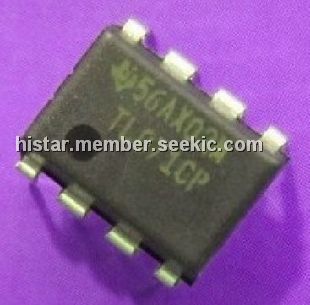

TL071

DIP8, Low Power Consumption, Wide Common-Mode, Differential Voltage Ranges, High Slew Rate 13 V/μs

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.35~0.47 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.35~0.47

PartNumber:: TL071

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Zou pinhui's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-10

From Other Seller

Part Number:TL071
US $0.35 - 0.47
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The JFET-input operational amplifier TL071 is similar to the TL08x series, with low input bias and offset currents and fast slew rate. The low harmonic distortion and low noise make the TL07x series ideally suited for high-fidelity and audio preamplifier applications. Each amplifier features JFET inputs of the TL071 (for high input impedance) coupled with bipolar output stages integrated on a single monolithic chip. The TL071 is characterized for operation from 0℃ to 70℃. The I-suffix devices are characterized for operation from -40℃ to 85℃. The M-suffix devices are characterized for operation over the full military temperature range of -55℃ to 125℃.

Parametrics

TL071 absolute maximum ratings: (1)Supply voltage: VCC+ 18 V; (2)VCC: 18 V; (3)Differential input voltage, VID: ±30 V; (4)Input voltage, VI: ±15 V; (5)Duration of output short circuit: Unlimited; (6)Operating virtual junction temperature, TJ: 150℃; (7)Case temperature for 60 seconds: FK package: 260℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: J, JG, or W package: 300℃; (9)Storage temperature range, Tstg: 65℃ to 150℃.

Features

TL071 features: (1)Low Power Consumption; (2)Wide Common-Mode and Differential Voltage Ranges; (3)Low Input Bias and Offset Currents; (4)Output Short-Circuit Protection; (5)Low Total Harmonic Distortion 0.003% Typ; (6)Low Noise Vn = 18 nV/√Hz Typ at f = 1 kHz; (7)High Input Impedance JFET Input Stage; (8)Internal Frequency Compensation; (9)Latch-Up-Free Operation; (10)High Slew Rate 13 V/μs Typ; (11)Common-Mode Input Voltage Range Includes VCC+.
