Product Summary

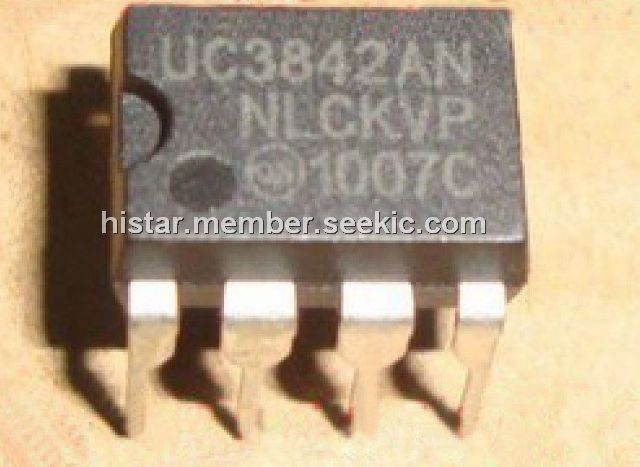

The UC3842AN is a high performance current mode controller. It is designed for off–line and dc–to–dc converter applications offering the designer a cost effective solution with minimal external components. The UC3842AN features a trimmed oscillator for precise duty cycle control, a temperature compensated reference, high gain error amplifier, current sensing comparator, and a high current totem pole output ideally suited for driving a power MOSFET. The UC3842AN also features consisting of input and reference undervoltage lockouts each with hysteresis, cycle–by–cycle current limiting, programmable output deadtime, and a latch for single pulse metering.
Parametrics
UC3842AN absolute maximum ratings: (1)Total Power Supply and Zener Current (ICC + IZ): 30 mA; (2)Output Current, Source or Sink IO: 1.0 A; (3)Output Energy (Capacitive Load per Cycle) W: 5.0 mJ; (4)Current Sense and Voltage Feedback Inputs Vin: -0.3 to + 5.5 V; (5)Error Amp Output Sink Current IO: 10 mA; (6)Operating Junction Temperature TJ: + 150 ℃; (7)Operating Ambient Temperature TA: 0 to + 70 ℃; (8)Storage Temperature Range Tstg: -65 to + 150 ℃.
Features
UC3842AN features: (1)Trimmed Oscillator Discharge Current for Precise Duty Cycle Control; (2)Current Mode Operation to 500 kHz; (3)Automatic Feed Forward Compensation; (4)Latching PWM for Cycle-by-cycle Current Limiting; (5)Internally Trimmed Reference with Undervoltage Lockout; (6)High Current Totem Pole Output; (7)Undervoltage Lockout with Hysteresis; (8)Low Startup and Operating Current; (9)Direct Interface with Motorola SENSEFET Products.

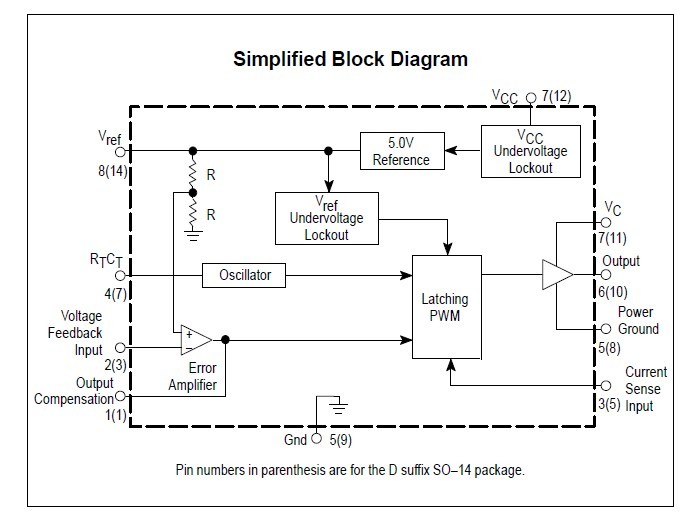

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 UC3842AN |
Texas Instruments |
Current Mode PWM Controllers Current Mode |
Data Sheet |
|
|
||||||||||||
|
UC3842AN2 |
ON Semiconductor |
Other Power Management 52kHz 1A Current PWM |
Data Sheet |
Negotiable |
|
||||||||||||
|
UC3842AN2G |
ON Semiconductor |
Other Power Management 52kHz 1A Current PWM w/96% Duty Cycle Max |
Data Sheet |
Negotiable |
|
||||||||||||
|
UC3842ANG |
ON Semiconductor |
Other Power Management 52kHz 1A Current PWM w/96% Duty Cycle Max |
Data Sheet |
Negotiable |
|
||||||||||||
|
UC3842ANG4 |
Texas Instruments |
Current Mode PWM Controllers Current-Mode PWM Controller |
Data Sheet |
|
|
||||||||||||
